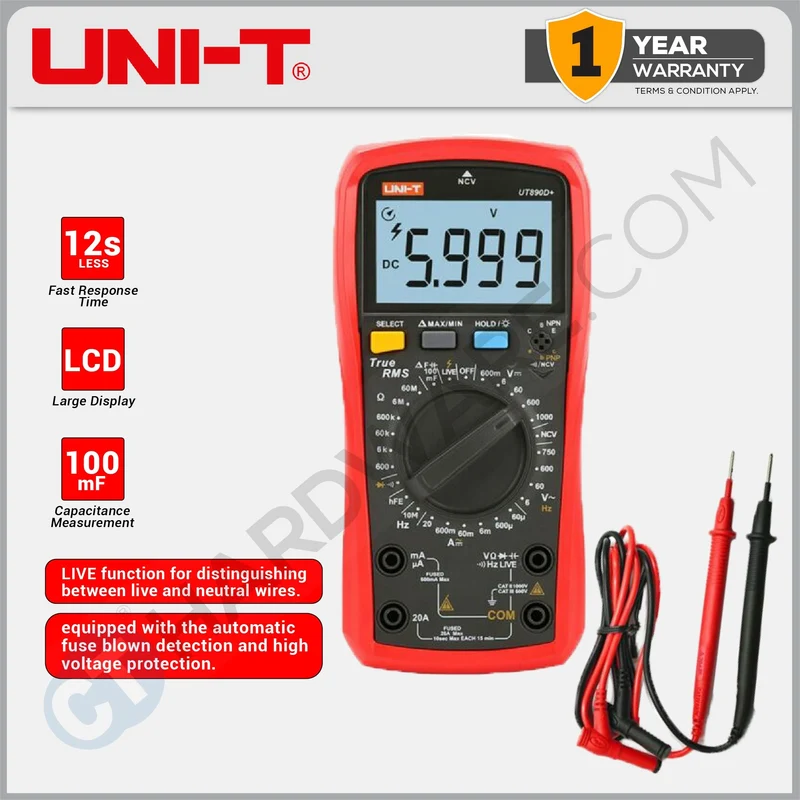

UNI-T UT890D Digital Multimeter

23,88 €16,52 €Im Angebot
Menge

Beschreibung

UNI-T UT890D Digital Multimeter

Features

○ 6000 Counts
○ True RMS voltage and current measurements
○ Capacitance, Resistance, Buzzer, Diode
○ Capacitance with REL function, resolution is 1pF, maximum measurement range is 6000μF
○ Highly accurate frequency measurement function; minimum resolution is 0.001Hz
○ MAX\MIN and MAX-MIN value
○ DC current minimum resolution is 0.01 A, AC current minimum resolution is 1μA, maximum range is 20A
○ HOLD function,backlight and auto power off function

Technical Data

Specifications Range Accuracy
DC current(V) 600.0mV ±(0.5%＋4)
6.000V/60.00V/600.0V ±(0.5%+2)
1000V ±(0.7%+10)
AC current(V) 6.000V/60.00V/600.0V ±(0.8%+3)
750V ±(1.0%+10)
AC Current(A) 6.000mA/60.00mA ±(1.0%+12)
600.0mA ±(2.0%+3)
20.00A ±(3.0%+5)
DC Current(A) 60.00μA/6.000mA/60.00mA ±(0.8%+8)
600.0mA ±(1.2%+5)
20.00A ±(2.0%+5)
Resistance(Ω) 600.0Ω ±(0.8%+5)
6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ ±(0.8%+3)
60.00MΩ ±(1.0%+25)
Capacitance（F） 9.999nF ±(5.0%+35)
99.99nF~999.9μF ±(2.5%+20)
9.999mF ±(5.0%+10)
99.99mF 10mF≤C≤20mF
±（10.0%+5)
Frequency(Hz) 9.999Hz~9.999MHz ±(0.1%+5)
Measurement range: 10Hz～10MHz(Auto Range), ≤100kHz∶100mVrms≤Input amplitude≤30Vrms,＞100kHz～1MHz∶200mVrms≤Input amplitude≤30Vrms，＞1MHz∶600mVrms≤Input amplitude≤30Vrms

MAX/MIN 　 √
True RMS 　 √
Frequency Response Applies to sine wave and triangular wave, ≥200Hz, other waveforms are for reference 40Hz~1kHz
Diode Test 　 √
hFE 　 √
Continuity Test 　 √
REL 　 √
Data Hold 　 √
Backlight Adjustment 　 √
Battery Voltage Indicator 　 √
Auto Power Off Around 15    Minutes √
Input Impedance For DCV ≥10MΩ √
General Characteristics 　
Use Environment 18℃～28℃(64℉～82℉) Relative Temperature
Battery 9V Battery（6F22）
LCD size 63mm × 29mm
Product Color Red and Grey
Product Net Weight 300g
Product Size 186mm × 91mm × 39mm

What's in the box

1x UT890D Digital Multimeter c/w Standard Accessories (Test Leads, Battery, manual)
