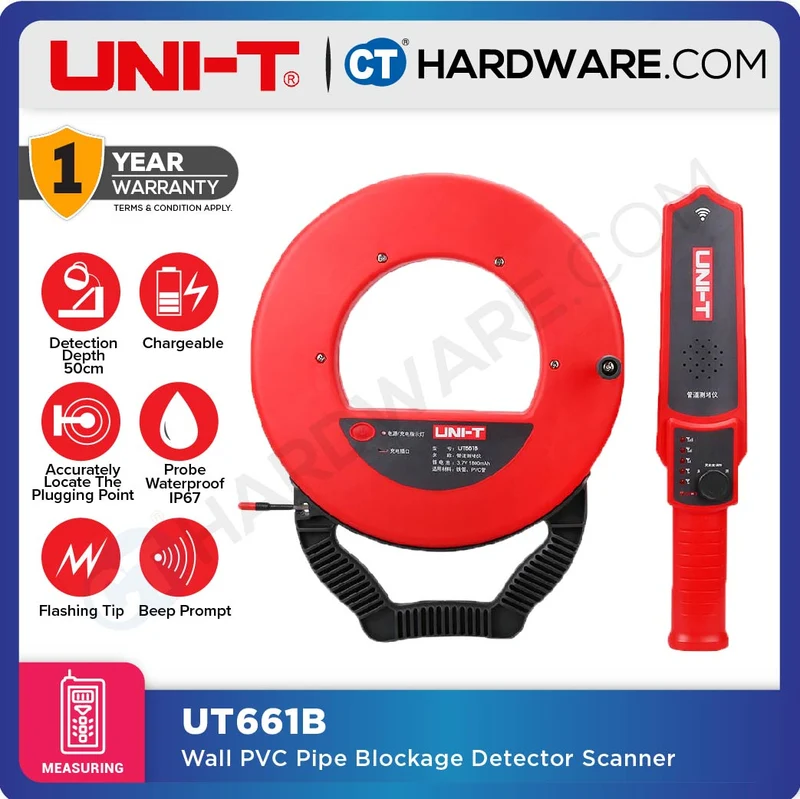

UNI-T UT661B WALL PVC PIPE BLOCKAGE DETECTOR SCANNER 30M MEASURE DISTANCE (DEPTH) 50CM

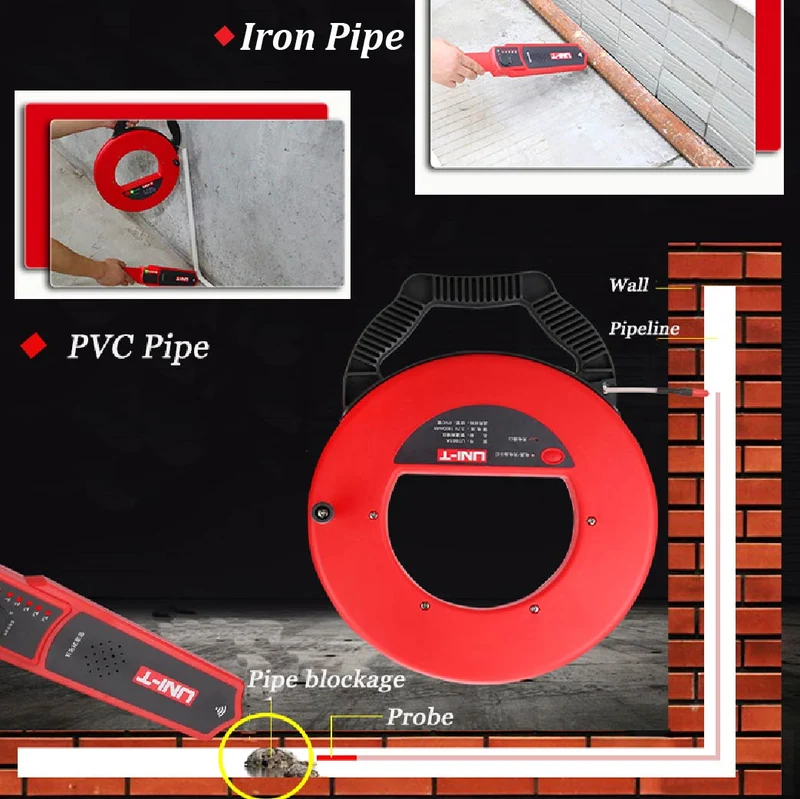

The UT661 series pipeline blockage detector can quickly locate blockages clogging inside pipelines. It is able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m. UT661 is easily operable, and be used to detect steel, iron, and PVC pipes.

FEATURES AND BENEFITS:

• Can be detected in the pipeline blockage
• Iron pipe / PVC pipe measurable
• Maximum detection depth: 50 cm

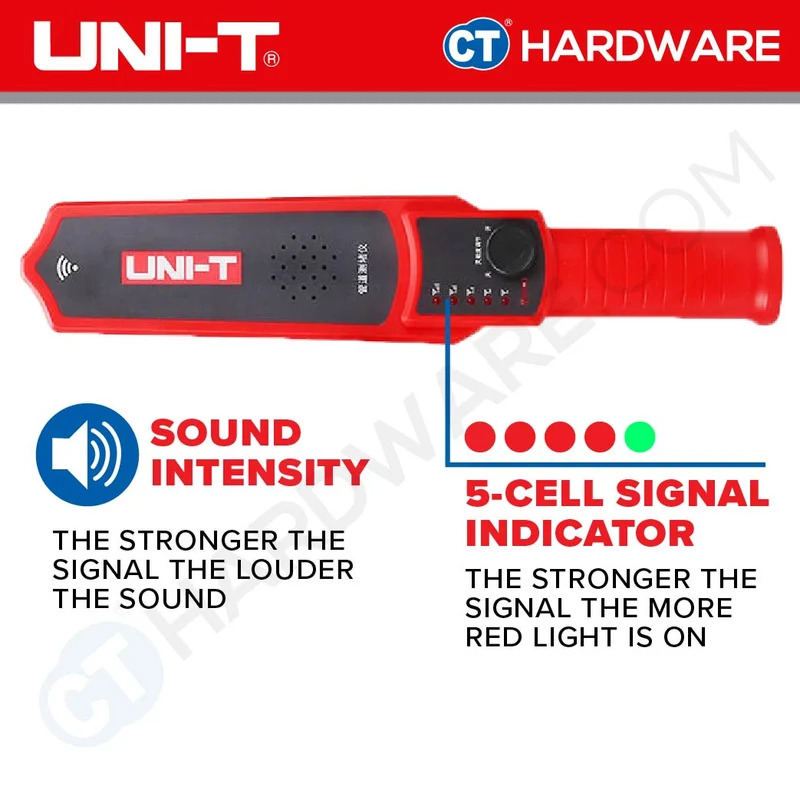

• Beep prompt
• Flash tips
• Low voltage display

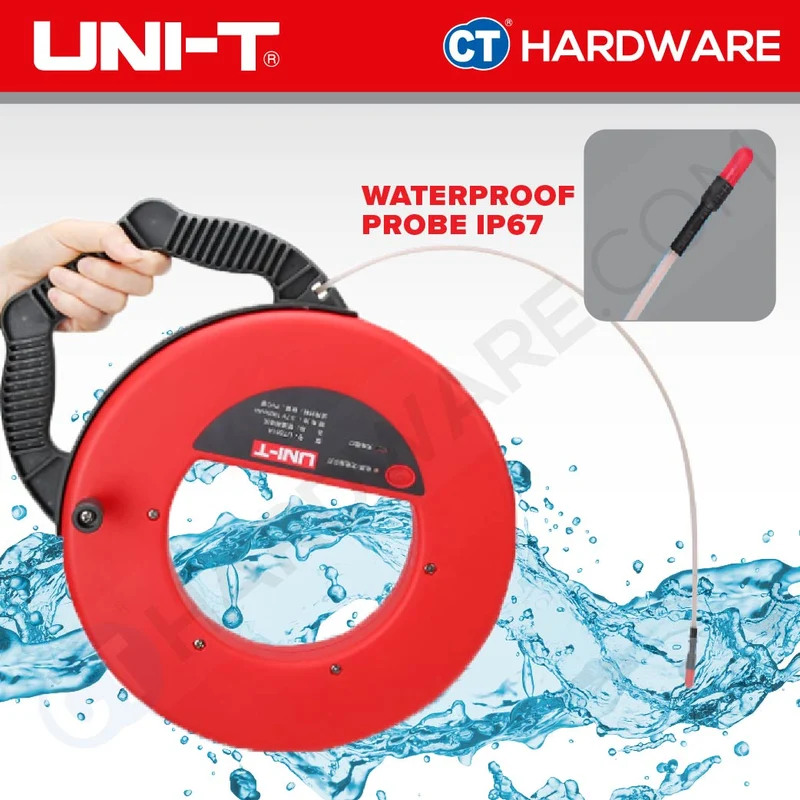

• Probe waterproof rating IP67

SPECIFICATIONS:

• Features: UT661B
• Transmitter: √
• Signal line length: 30m
• Receiver: √
• Measuring distance (depth): >50cm
• Transmitter current Shutdown current <2uA, Working current: 230~310mA
• Receiver current Shutdown current <2uA, Standby current: <40mA
• Maximum operating current: 150~450mA (distance 1cm)
• Chargeable: √ √
• Recharging current: 450~550mA
• 1cm distance test output sound: >93dB
• 0.5m distance test output sound: >75dB

Special Features:

• Transmitter battery Built-in lithium battery: (3.7V1800mAh)
• Receiver battery lithium battery BL-5C: (3.7V 1120mAh)
• Usage time: About 10 hours
• Operating temperature: -10C~50C10~80%RH
• Storage temperature: -20C~50C10~70%RH
• Measurable pipe material: Plastic, Metal
• Dimensions Transmitter Dimensions: 386x303x42mm
• Receiver Dimensions: 385x75x44mm
• Weight Transmitter: 1.10KG Transmitter
