UNI-T UT501A Insulation Resistance Tester

57,78 €34,91 €Im Angebot
Menge

Beschreibung

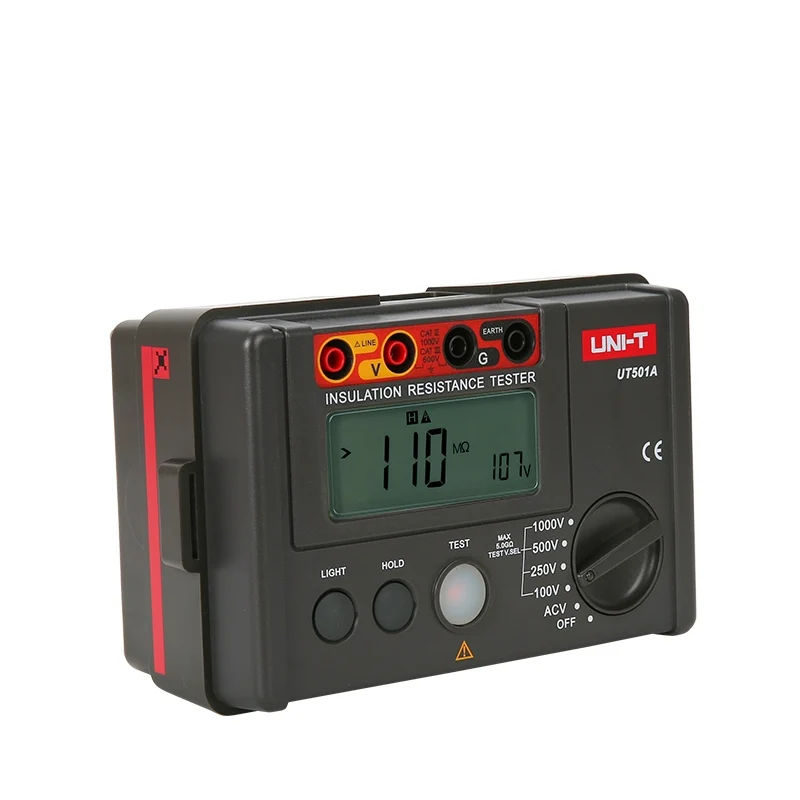

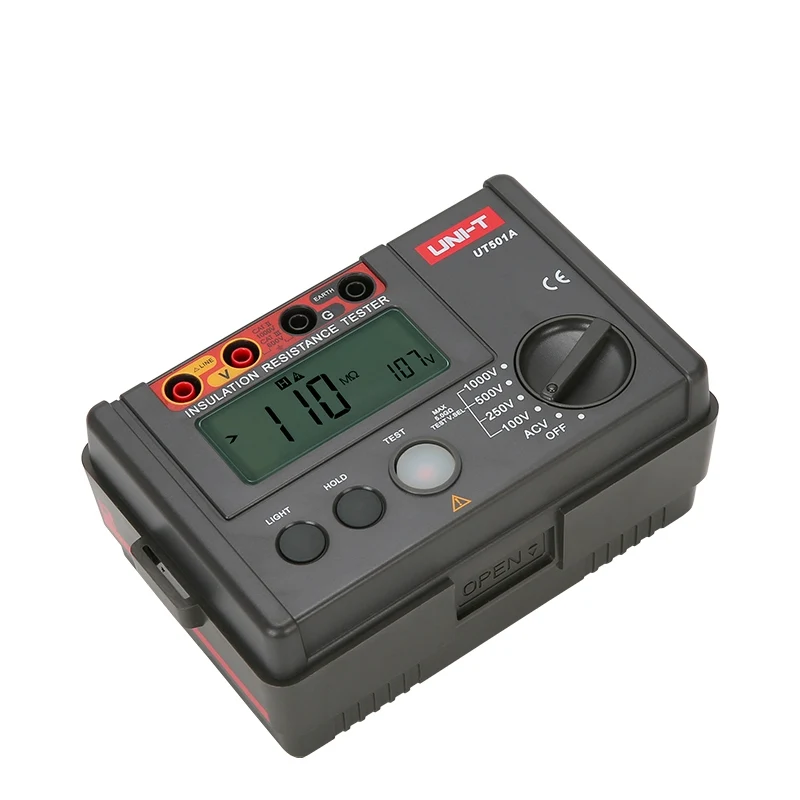

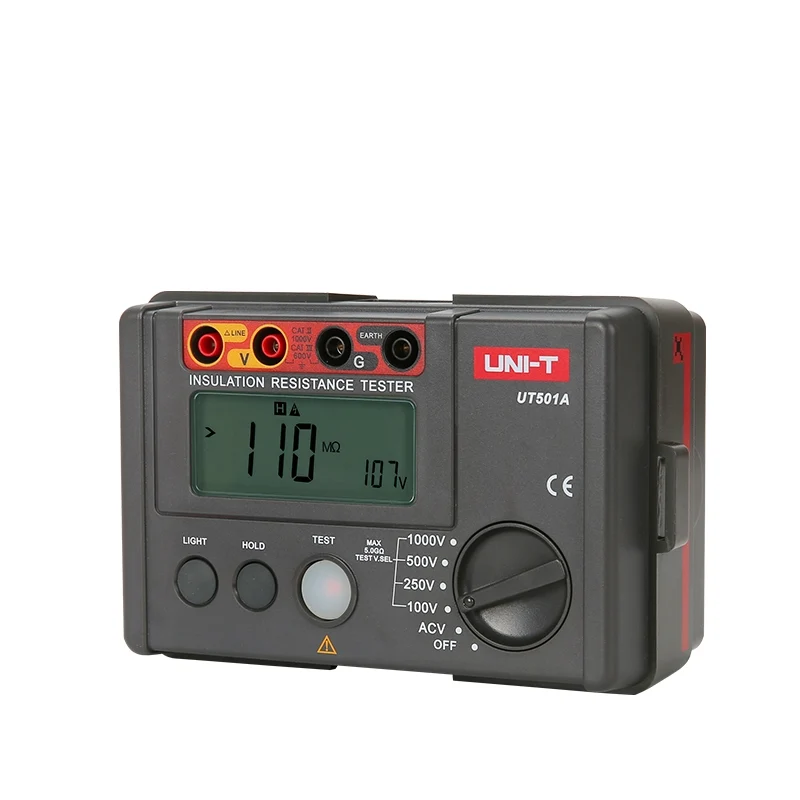

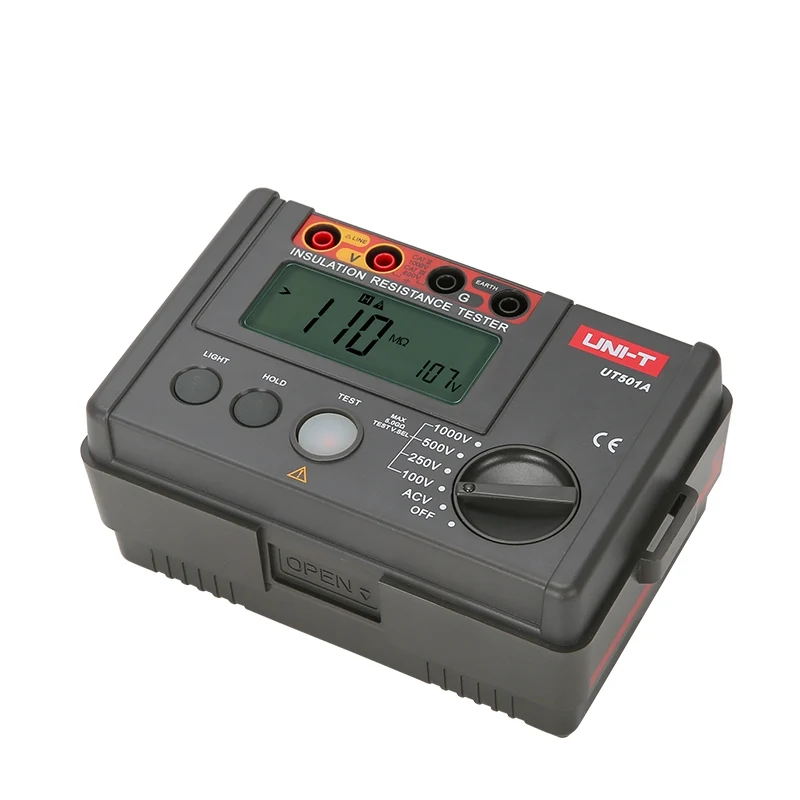

UNI-T UT501A Insulation Resistance Tester

UNI-T’s UT501A is a 2000-count auto range digital insulation resistance tester with low resistance test, high voltage and low battery indication.

UT500 series adopts latest design and very large-scale integration and digital circuits, combined with measurement functions of insulation resistance, DC voltage, AC voltage. It has advantages such as high precision, stable performance, and simple operation. It is used for insulation resistance measurement of various electrical equipment and insulation materials, such as transformers, motors, cables, switches, electrical appliances.

Technical Data

Specifications

Range

Accuracy

Model

　

UT501A

Insulation Resistance (Ω)

Test Voltage

100V/250V/500V/1000V

0%~10%

100V

0.00MΩ~100MΩ

±(3%+5)

250V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~5.5GΩ

±(5%+5)

500V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~5.5GΩ

±(5%+5)

1000V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~5.5GΩ

±(5%+5)

Load Current

50V (R=50kΩ) 1mA

0%~10%

100V (R=100kΩ) 1mA

0%~10%

250V (R=250kΩ) 1mA

0%~10%

500V (R=500kΩ) 1mA

0%~10%

1000V (R=1MΩ) 1mA

0%~10%

Short Circuit Current

　

<2mA

AC Voltage (V)

30V~750V

±(2%+3)

Features

Display Count

　

1999

Auto Range

　

√

Low Battery Indication

　

√

LCD Backlight

　

√

Alarm Indication

　

√

Alarm Buzzer

　

√

High Voltage Indication

　

√

Overload Indication

　

√

Auto Discharge

　

√

Test Voltage Vice Display

　

√

10MΩ Internal Resistance Test

　

√

General Characteristics

Power

1.5V Alkaline Batteries (5#) x 6

LCD Size

70.6mm x 34mm

Product Color

Red and Grey

Product Weight

500g

Product Size

150mm x 100mm x 71mm

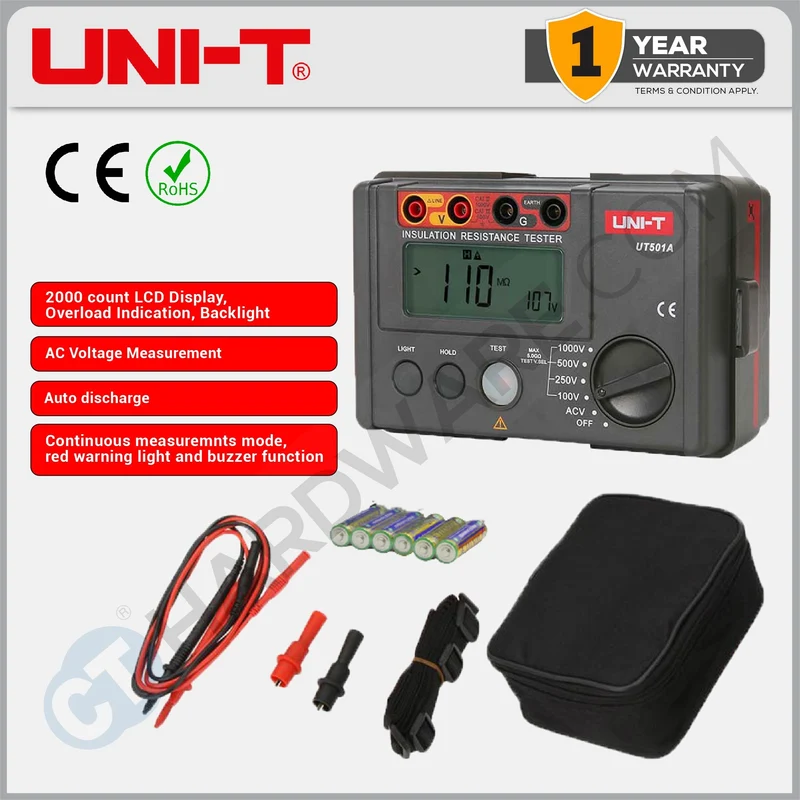

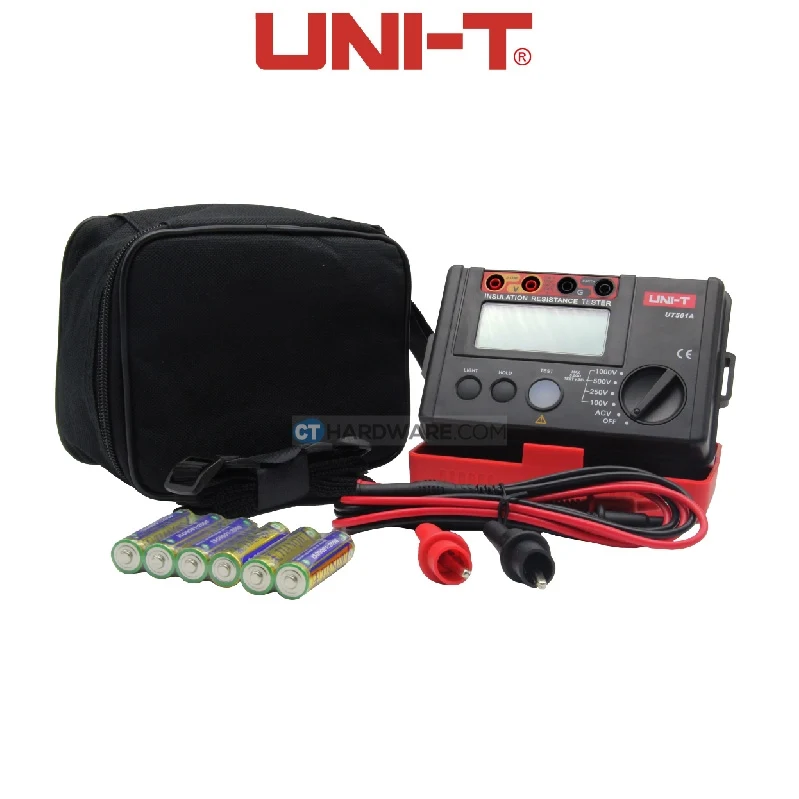

What's in the box

1x UT501A Insulation Resistance Tester c/w Standard Accessories (Test Lead, Probe, Alligator Clip, Batteries, Carrying Bag, Gallus, manual)
