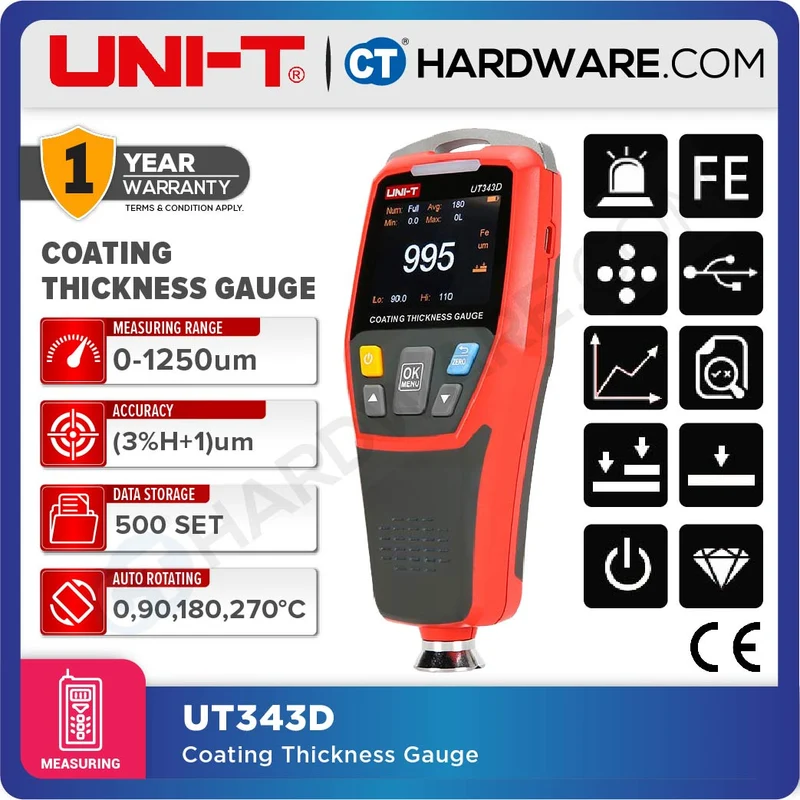

UNI-T UT343D COATING THICKNESS GAUGE 1250UM | 3V BATTERY

Name: UNI-T UT343D COATING THICKNESS GAUGE 1250UM | 3V BATTERY
Brand: UNI-T
SKU: UT343D
Price: 64.91 EUR
Availability: InStock

~~117,06 €~~64,91 €Im Angebot

Beschreibung

Features:

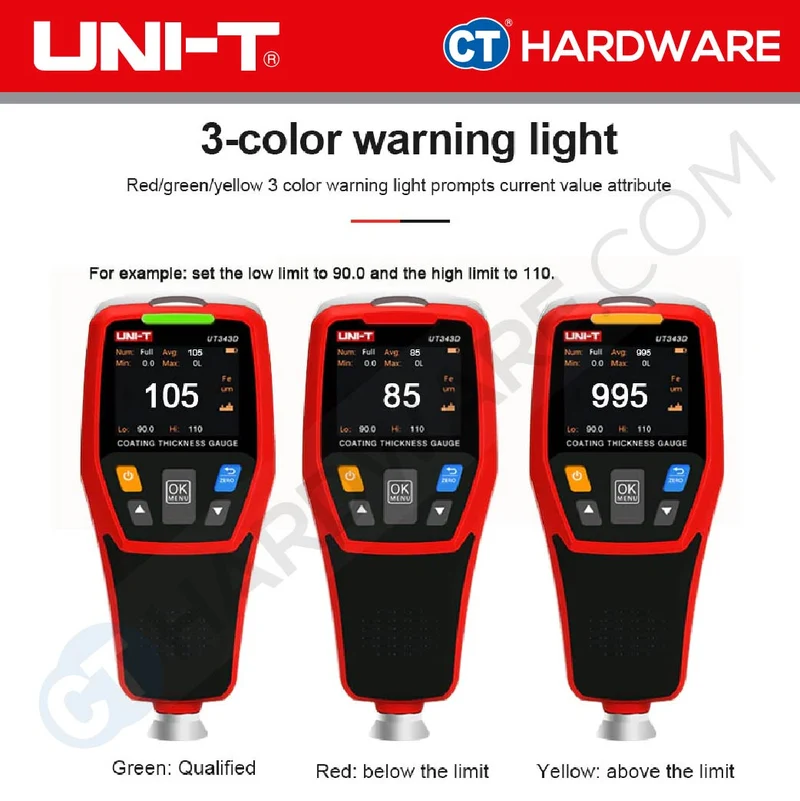

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and use a 3-color LED and audio alarm to quickly determine if the coating being tested falls within the preset range, greatly increasing work efficiency.

UT343 display is auto rotatable. This CE-certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

Applications:

It is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

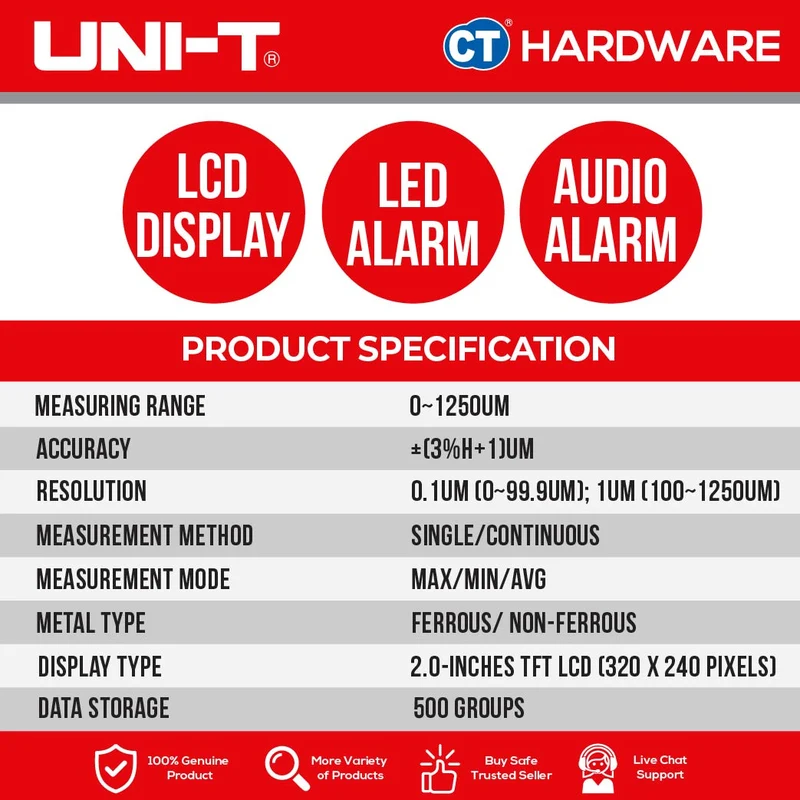

Specifications:

Specifications	Range
Measuring range	0~1250um
Accuracy	±(3%H+1)um
Resolution	0.1um (0~99.9um); 1um (100~1250um)
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/ non-ferrous
Features
Display type	2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control	√
Auto rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
PC analysis software	√
USB communication	√
Quick test mode	√
Data storage	500 groups
Auto power off	√
Low battery indication	√
General Characteristics
Power	3V battery (R03) x 2
Display	48mm x 36mm
Product colour	Red and grey
Product net weight	175g
Product size	153.5mm x 64.5mm x 41mm
Standard accessories	Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	355mm x 320mm x 195mm
Standard carton gross weight	7.5kg
