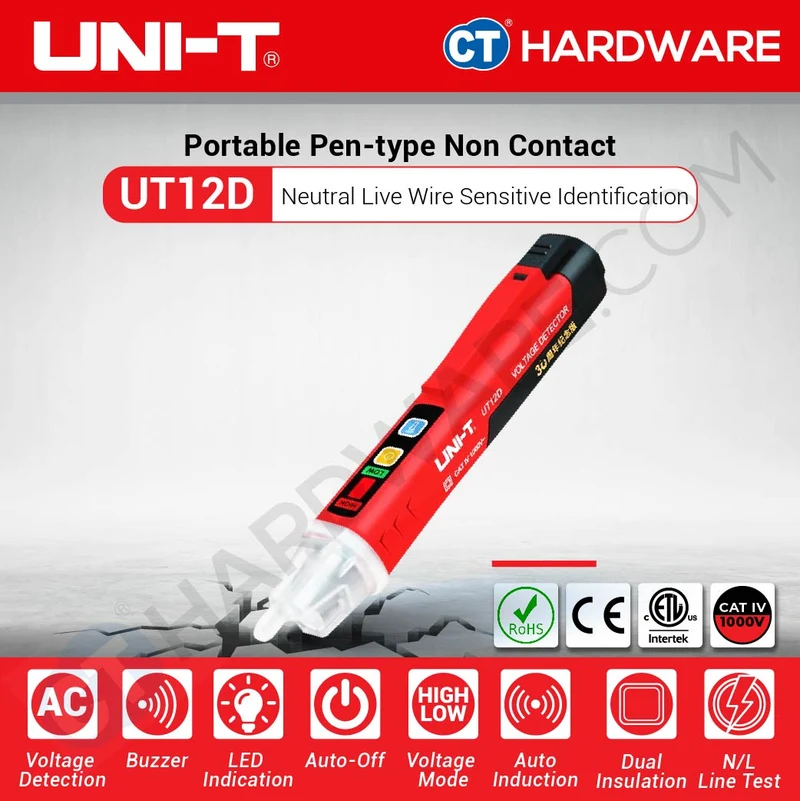

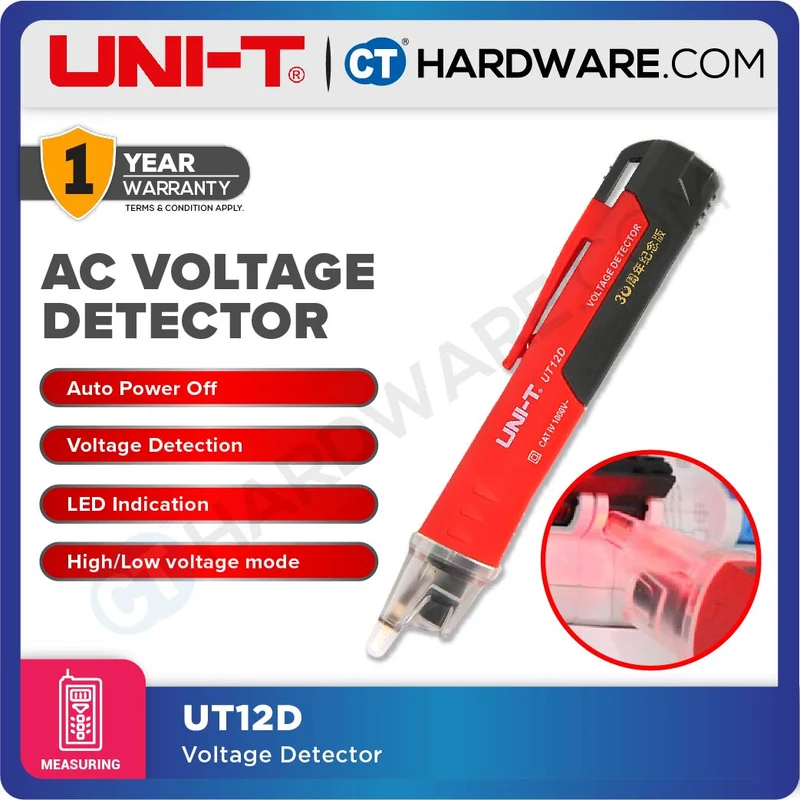

UNI-T UT12D VOLTAGE DETECTOR

VOLTAGE DETECTORS

UT12 series non-contact AC voltage detectors are widely used in the maintenance of low voltage equipment such as conductors, cables, sockets, and other electrical/electronic instruments. It is a very handy tool for electricians.

FEATURES:

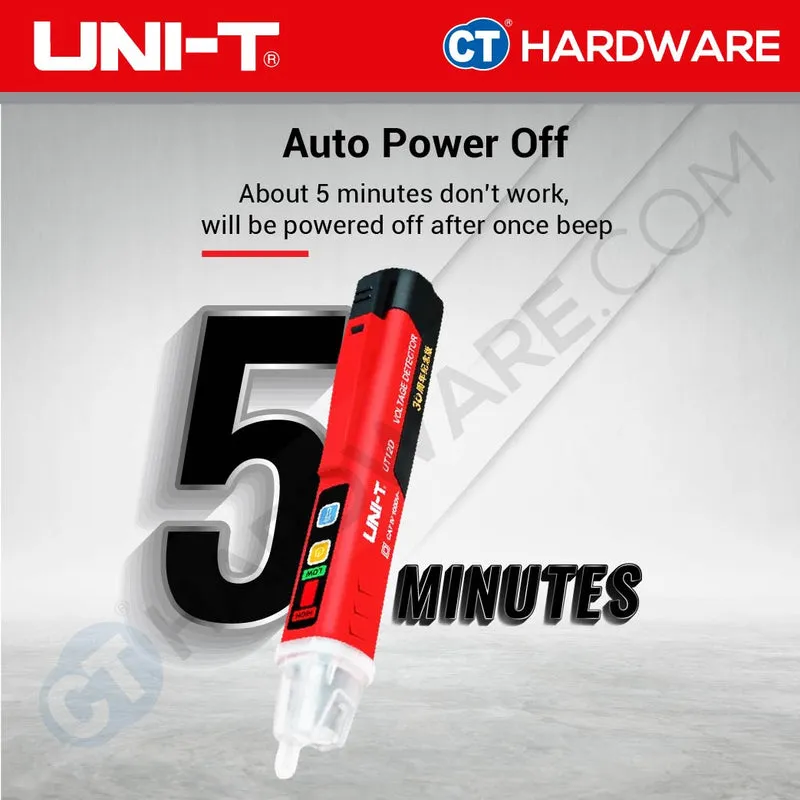

1. Auto power off
2. Buzzer
3. LED indication
4. AC voltage detection

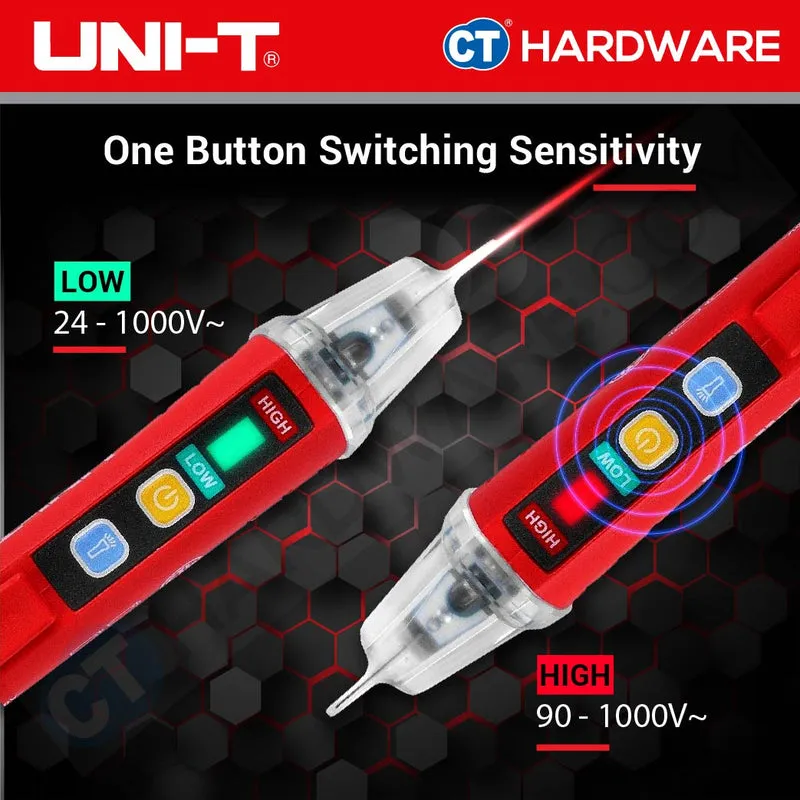

5. High/Low voltage mode

APPLICATIONS:

Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines, underground mining lighting, cables with a thick insulation layer, and other weak electromagnetic AC signals.
High voltage mode: Urban electric supply and three-phase systems (90~1000V). For example, power distribution units, electrical panels, electrical appliances.

SPECIFICATIONS:

AC voltage (Low)	24V~1000V
AC voltage (High)	90V~1000V
Frequency range	50/60Hz

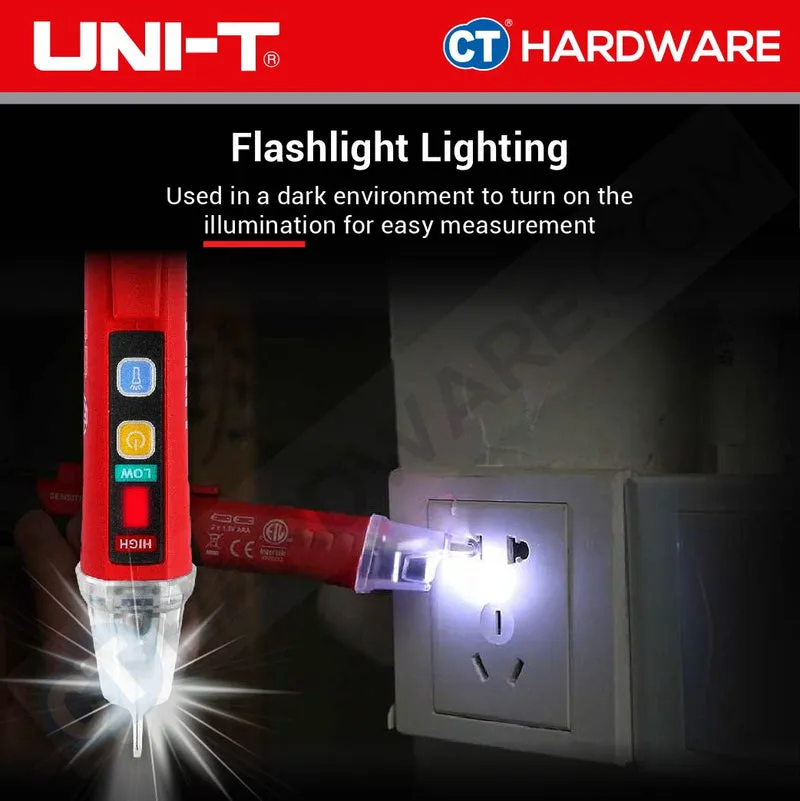

Built-in flashlight	√
※Audible (buzzer) and visual (LED) indication	√
Buzzer	√
LED indication	√
Auto power off	√
Low voltage indication	√
Drop test	1m
