Sungrow SBR096 9,6 kWh High-Voltage LFP Battery Storage

The Sungrow SBR096 High-voltage battery storage Provides 9,6 kWh of storage capacity in a modular LFP system. Three SMR032 battery modules, together with the associated system unit, form the SBR096 configuration. Up to 100 percent usable energy, 30 A continuous charge and discharge current, and the pluggable module design support efficient, expandable photovoltaic storage solutions for residential buildings. The modular concept simplifies capacity-based planning of compatible Sungrow storage systems.

Delivery

3× Sungrow SMR032 battery module
1× AST system/connection unit as per delivery position
Not included: Inverter and external installation components

Produktvorteile

-- 9,6 kWh system capacity. Three 3,2 kWh modules make up the SBR096 configuration.

-- LFP cell chemistry. The modular high-voltage system is designed for safety and long-term use.

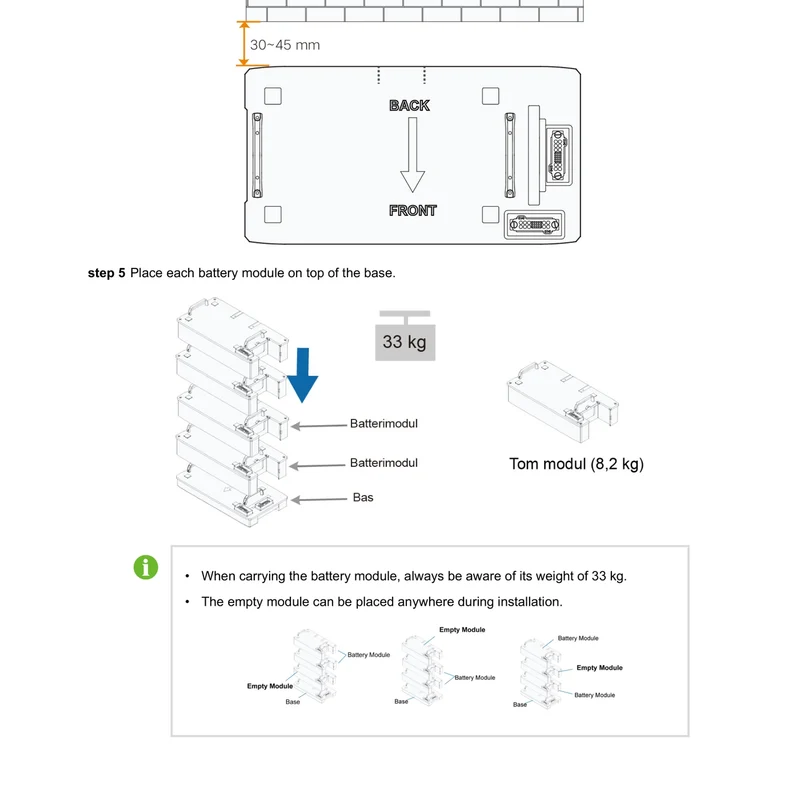

-- Plug-in modular design. No external connection cables are required between the battery modules.

Compatibility

For approved Sungrow hybrid inverters and SBR system components. Firmware, inverter model, and permissible number of modules must be checked before installation.

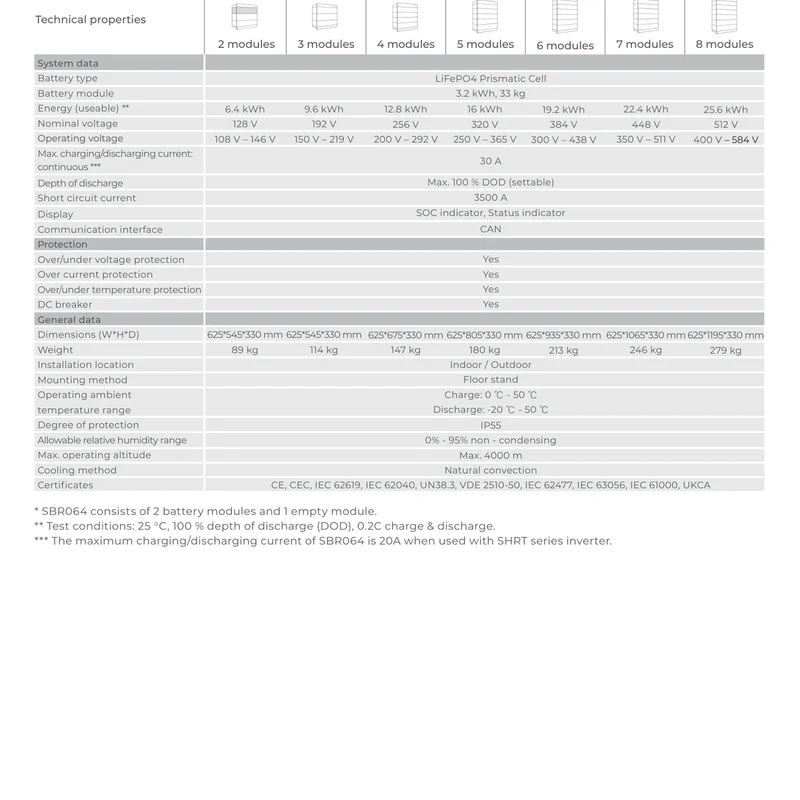

Technical information

-- Usable energy: 9,6 kWh at 25 °C, 100% DOD and 0,2C
-- Battery modules: 3 × 3,2 kWh
-- Battery chemistry: Lithium iron phosphate (LiFePO4)
-- Nominal voltage: 192 V
-- Operating voltage: 150–219 V
-- Max. continuous charging/discharging current: 30 A
-- Discharge depth: Up to 100%, adjustable
-- Communication: CAN
-- Protection class: IP55
-- Setup: Indoors or outdoors, standing
-- Charging temperature: 0 to +50 °C
-- Discharge temperature: -20 to +50 °C
-- Relative humidity: 0–95%, non-condensing
-- Max. operating altitude: 4.000 m
-- Cooling: Natural convection
-- Dimensions (W × H × D): 625 × 545 × 330 mm
-- System weight: 114 kg

Matching accessories and related products

Alternative high-voltage storage solutions from our product range. They belong to a different manufacturer's platform and are not expansion modules for the Sungrow SBR096.

HUAWEI LUNA2000-5-E0 PV battery module
HUAWEI LUNA2000-7-E1 PV battery module
HUAWEI LUNA2000-5-S0 battery storage
HUAWEI LUNA2000-10-S0 battery storage

Why Mini Power

At Mini Power, you'll find the Sungrow SBR096 clearly labeled with its 9,6 kWh configuration. We differentiate between battery modules, system unit, and separately required system components to ensure the scope of delivery remains transparent before purchase. The technical specifications are taken from the manufacturer's documentation. Consult your qualified installer to verify inverter compatibility, firmware, installation location, and any future expansion requirements. Proper planning will also consider mounting distances, load-bearing capacity, connection cables, and the desired operating conditions.

Frequently asked questions

Are the inverter and cables included?

No. The SBR096 battery configuration mentioned is supplied; inverter and external installation components are required separately.

-- Can the storage be expanded?

Yes, within the SBR system boundaries released by Sungrow and in compliance with the installation specifications.
