SolaX T-BAT H 5.8 V2 Master 5,8 kWh high-voltage battery

The SolaX T-BAT H 5.8 V2 Master high-voltage battery Combining 5,8 kWh of total capacity with integrated master control for compatible SolaX storage systems, LFP cell chemistry, 5,1 kWh usable capacity, up to 35 A charging and discharging current, and IP65 protection ensure safe, modularly expandable operation. Floor or wall mounting allows for flexible placement within the designated installation area, ensuring predictable future system expansion.

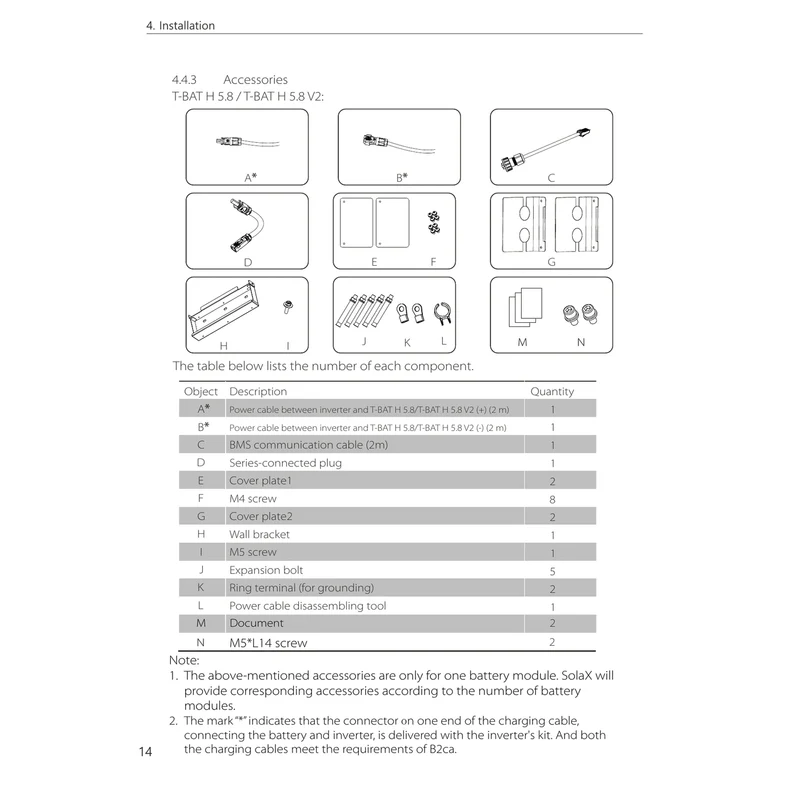

Delivery

1× SolaX T-BAT H 5.8 V2 master battery
Not included: Slave modules, inverters and external installation components

Produktvorteile

-- 5,8 kWh total capacity. According to the manufacturer, 5,1 kWh of this is usable.

-- Master unit with system control. It forms the basis of a compatible T-BAT-H-5.8-V2 system.

-- Modularly expandable. Suitable HV11550-V2 slave modules can be added within the system boundaries.

Compatibility

For approved SolaX hybrid inverters and compatible HV11550-V2 slave modules. The permissible number of modules and system configuration must be checked beforehand.

Technical information

-- Total capacity: 5,8 kWh
-- Usable capacity: 5,1 kWh
-- Battery type: LFP
-- Max. charging/discharging current: 35 A
-- Protection class: IP65

Matching accessories and related products

Alternative high-voltage battery storage systems from our product range. These Huawei models are not expansion modules for SolaX; inverter approvals and system components differ.

HUAWEI LUNA2000-5-E0 PV battery module
HUAWEI LUNA2000-7-E1 PV battery module
HUAWEI LUNA2000-5-S0 battery storage
HUAWEI LUNA2000-10-S0 battery storage

Why Mini Power

Mini Power delivers the SolaX T-BAT H 5.8 V2 Master with clear role identification and traceable scope of delivery from our remote warehouse. Upon request, we will check the assignment of master, slave modules, and inverters to ensure that no incompatible storage stage is ordered and that the planned capacity can be implemented professionally. This allows you to compare the model, generation, and system requirements with your plans before purchasing and ask specific questions about your intended system.

Frequently asked questions

-- Can the master battery be operated on its own?

This depends on the approved SolaX inverter and the intended system configuration.

Are slave modules included?

No. This position includes only the master battery.
