SMA Sunny Tripower Hybrid X 8 STPH8-60 8 kW Hybrid Inverter

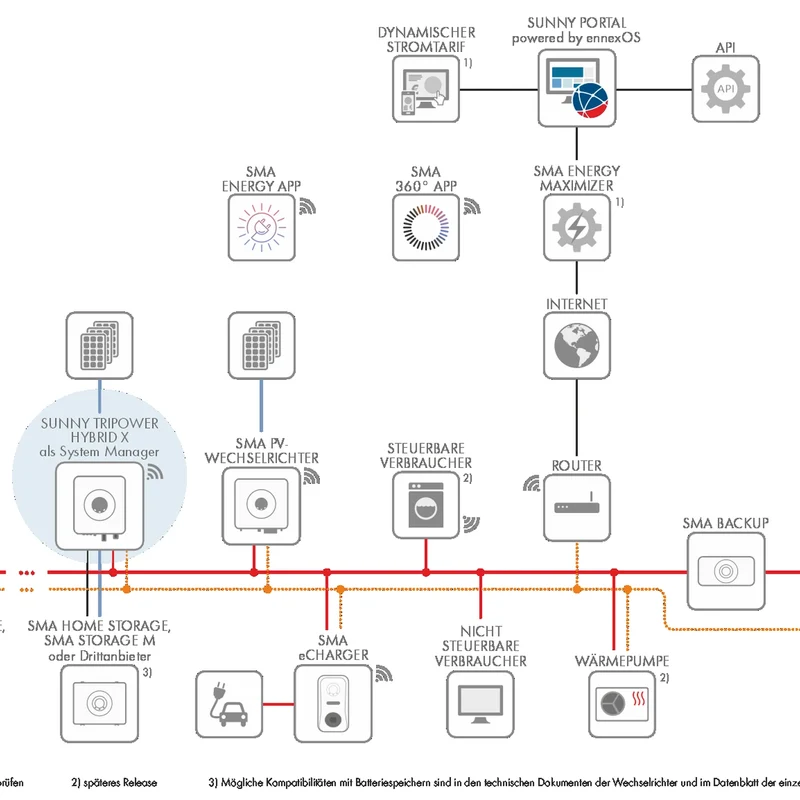

The SMA Sunny Tripower Hybrid X 8 STPH8-60 This is a three-phase hybrid inverter from the Hybrid-X series with a nominal output of 8 kW. It combines the conversion of photovoltaic energy with the integration of a compatible battery storage system. For reliable system planning, the PV generator, storage system, grid connection, metering solution, protection technology, and desired backup functions must be coordinated. Planning is carried out by a qualified solar energy contractor.

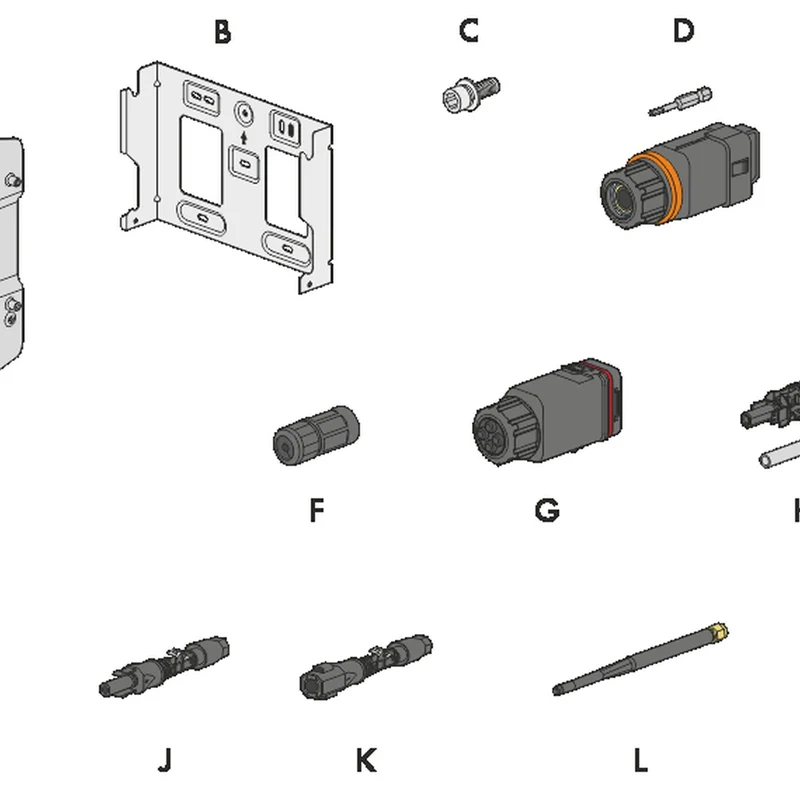

Delivery

1× SMA Sunny Tripower Hybrid X 8 STPH8-60
1× Mounting bracket
2× Combination screw M6x14
1× AC plug set including bit
1× AC plug for PLC connection including bit
2× RJ45 protective grommets
1× Cable gland with communication module (Multi I/O)
1× Positive and 1× Negative Battery DC Connector (MC4 Evo 2) with crimp contacts
3× Positive and 3× Negative PV-DC Connectors
1× WLAN antenna
1× Documentation package with security information, quick start poster and device-specific access information
Not included: Battery storage, external energy meter, SMA backup switching device and PV modules

Produktvorteile

-- Three-phase hybrid solution. The inverter combines PV conversion and compatible storage integration within a common system platform.

-- Defined 8 kW version. The model reference STPH8-60 clearly defines the performance class within the series.

Compatibility

Only use with PV, storage, and metering components approved by SMA for the STPH8-60. Grid parameters, backup concept, and project-specific design must be confirmed before ordering.

Technical information

-- AC rated power: 8 kW
-- Mains connection: Three-phase, 380/400/415 V
-- AC rated current: 11,6 A
-- Max. PV generator output: 12 kWp
-- Max. PV input voltage: 1.000 V
-- MPP range at rated power: 160–850 V
-- PV start voltage: 100 V
-- Minimum PV input voltage: 90 V
-- MPP tracker: 3
-- Strings per MPP tracker: 1
-- Max. current per MPP tracker: 18 A
-- Battery voltage range: 80–600 V
-- Max. battery charging/discharging current: 50 A
-- Max. battery charging power: 10 kW
-- Protection class: IP65
-- Dimensions (W × H × D): 467 × 555 × 239 mm
-- Weight: 33,5 kg

Matching accessories and related products

Alternative three-phase hybrid inverters from our product range. Battery platform, approvals and performance differ; the devices are not interchangeable without system testing.

HUAWEI SUN2000-8K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-10K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-12K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-15K-MB0 hybrid inverter

Why Mini Power

Mini Power offers the SMA Sunny Tripower Hybrid X 8 STPH8-60 with complete model reference and clear 8 kW designation. This allows for differentiation between versions in adjacent power classes. However, for a fully functional hybrid system, storage, PV generator, metering, protection technology, and grid requirements must be checked together. We clearly indicate this system dependency; planning, installation, and commissioning remain the responsibility of qualified specialist companies. This ensures that the system decision remains technically sound and comprehensible.

Frequently asked questions

What is the rated power output of the STPH8-60?

This model variant is assigned to the 8 kW power class.

Are the storage device and measuring device included?

No. These components are selected separately to match the planned SMA system.
