SMA Sunny Tripower Hybrid X 6 STPH6-60 6 kW Hybrid Inverter

The SMA Sunny Tripower Hybrid X 6 STPH6-60 This is a three-phase hybrid inverter from the Hybrid-X series with a nominal output of 6 kW. It combines photovoltaic conversion and the integration of a compatible battery storage system into a single system device. For correct system design, the grid connection, PV generator, storage system, metering concept, and desired backup functions must be planned together. This planning should be carried out by a qualified solar installation company.

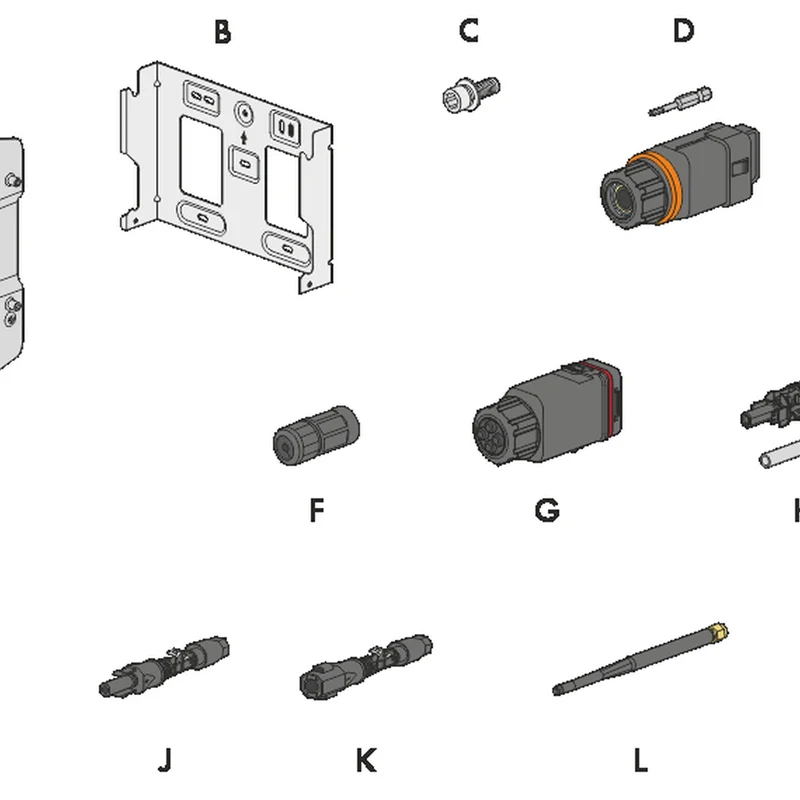

Delivery

1× SMA Sunny Tripower Hybrid X 6 STPH6-60
1× Mounting bracket
2× Combination screw M6x14
1× AC plug set including bit
1× AC plug for PLC connection including bit
2× RJ45 protective grommets
1× Cable gland with communication module (Multi I/O)
1× Positive and 1× Negative Battery DC Connector (MC4 Evo 2) with crimp contacts
3× Positive and 3× Negative PV-DC Connectors
1× WLAN antenna
1× Documentation package with security information, quick start poster and device-specific access information
Not included: Battery storage, external energy meter, SMA backup switching device and PV modules

Produktvorteile

-- Three-phase hybrid platform. PV generation and compatible storage integration are combined in one system architecture.

-- Clear performance class. The model designation STPH6-60 stands for the 6 kW version of the Hybrid-X series.

Compatibility

Only use components that SMA has approved for the Sunny Tripower Hybrid X STPH6-60. PV system design, battery storage, energy meter, backup concept and grid requirements must be checked on a project-specific basis.

Technical information

-- AC rated power: 6 kW
-- Mains connection: Three-phase, 380/400/415 V
-- AC rated current: 8,7 A
-- Max. PV generator output: 9 kWp
-- Max. PV input voltage: 1.000 V
-- MPP range at rated power: 120–850 V
-- PV start voltage: 100 V
-- Minimum PV input voltage: 90 V
-- MPP tracker: 3
-- Strings per MPP tracker: 1
-- Max. current per MPP tracker: 18 A
-- Battery voltage range: 80–600 V
-- Max. battery charging/discharging current: 50 A
-- Max. battery charging power: 10 kW
-- Protection class: IP65
-- Dimensions (W × H × D): 467 × 555 × 239 mm
-- Weight: 33,5 kg

Matching accessories and related products

Alternative three-phase hybrid inverters from our product range. Battery platform, approvals and performance differ; the devices are not interchangeable without system testing.

HUAWEI SUN2000-8K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-10K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-12K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-15K-MB0 hybrid inverter

Why Mini Power

At Mini Power, you receive the SMA Sunny Tripower Hybrid X 6 STPH6-60 with a clear model and performance classification. For hybrid systems, simply looking at the kilowatt rating isn't enough: storage capacity, PV voltage range, metering concept, grid connection, and backup topology must all be compatible. Therefore, we separate confirmed product features from project-specific components. The final system design, installation, and commissioning must be carried out by qualified professionals. This ensures that the system decision remains technically sound and transparent.

Frequently asked questions

Does it include a battery storage system?

No. A compatible battery storage system and other system components must be selected on a project-specific basis.

Who is allowed to install the inverter?

Network connection, installation and commissioning must be carried out by appropriately qualified specialists.
