Loom solar 10 kw grid connected AC Module
Beschreibung
Loom solar introduces a 10 kW solar power generating system using world's latest technology in solar panels called Solar AC Module.
A 10 kW solar system generates 50 units every day from morning 9 am to 5 pm which is sufficient to run multiple air conditioners along with lighting load for a house, shops, offices, and factories.
Product Overview

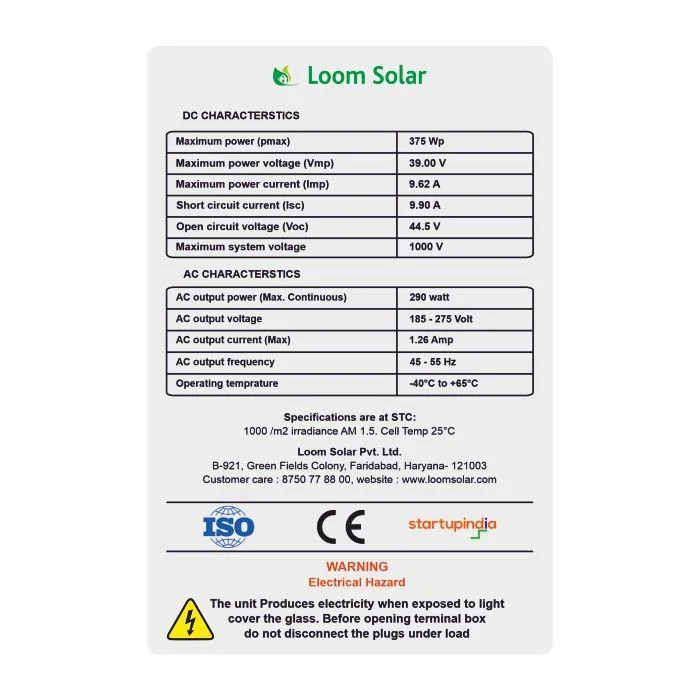

Solar Panel |
375 watt Mono crystalline AC Module |
Space required |
1000 sq.ft. |
1 Panel dimension |
Length – 6.2 feet, width – 3.2 feet |
1 panel weight |
25 kg |
Total panels |
30 Nos. (375 watt each) |
Package components

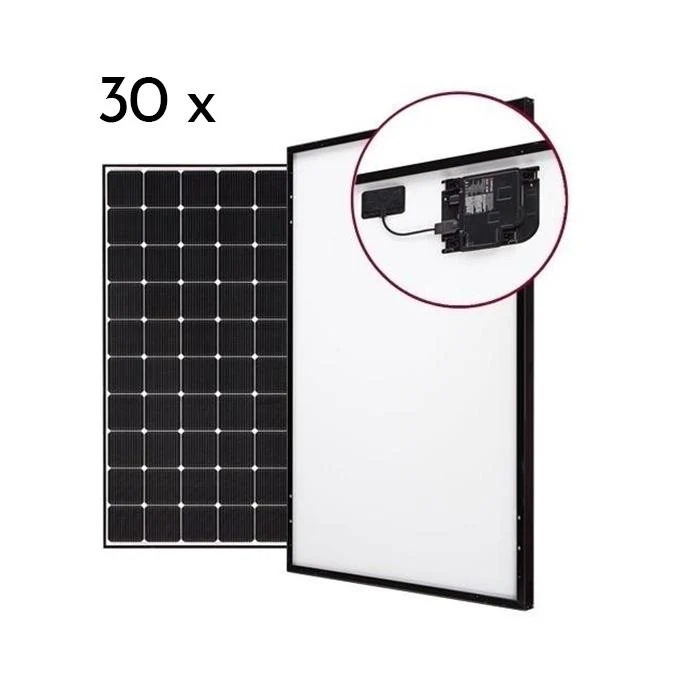

375 watt solar ac module |

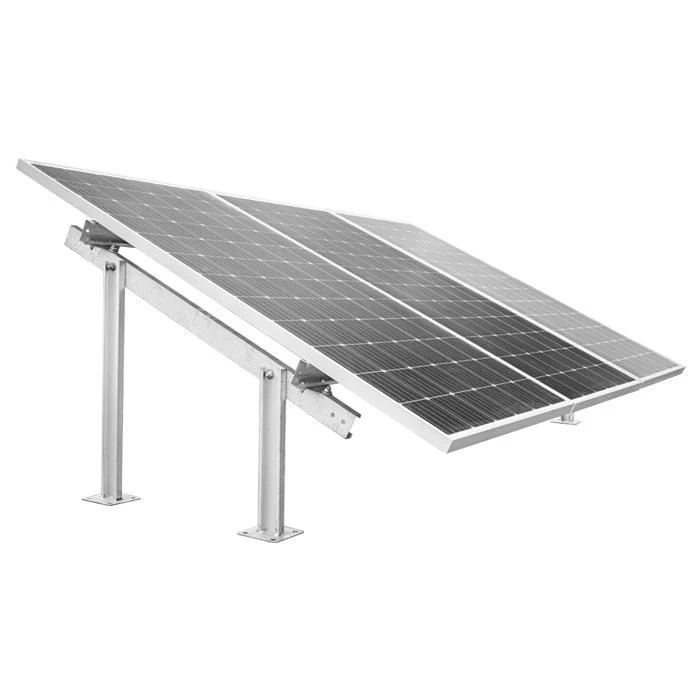

Solar panel stand : made of galvanized iron |

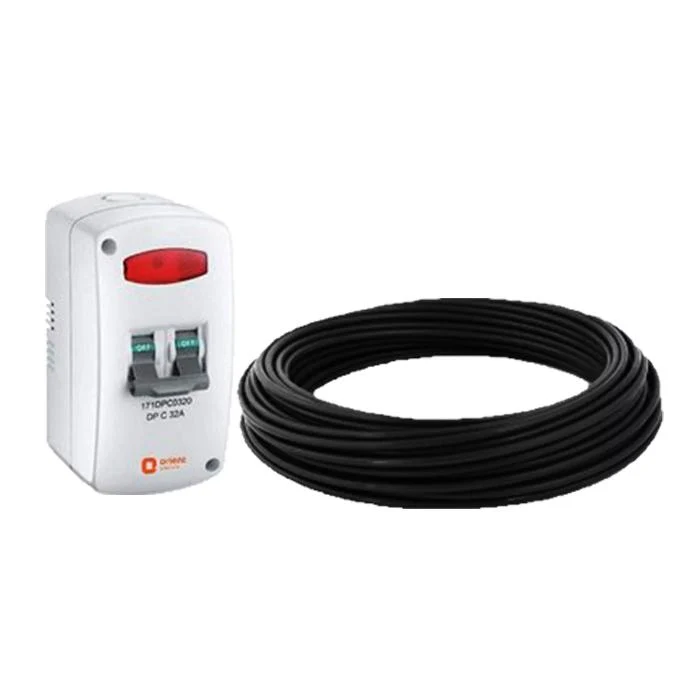

Connecting Cables |

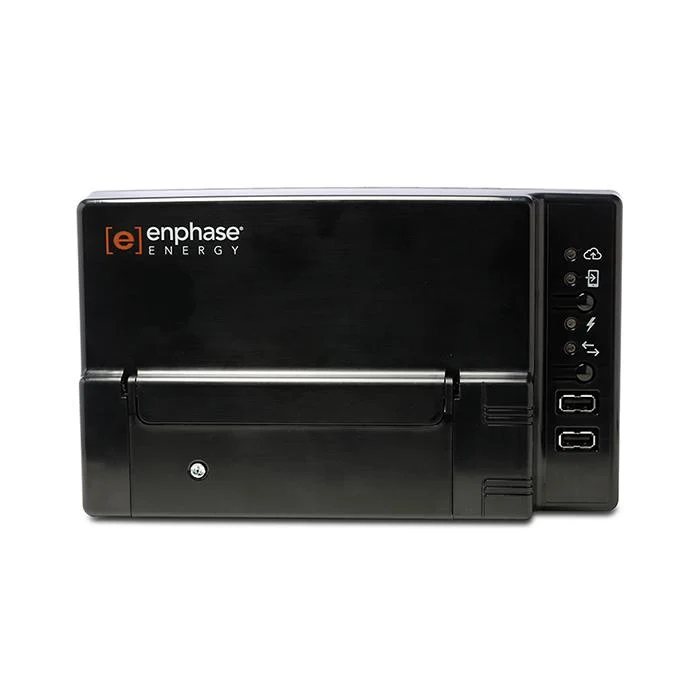

Panel level monitoring device |
Standard installation - Included |
DC vs AC Module : 7 things to consider.
# Illustrations 1: Performance when some panels are shaded
# Illustrations 2: Panel level performance monitoring
# illustrations 3 : Net Metering (Optional)
Installation Video
disclaimer : In case, you want to go for net - meter, it has to be applied by home owner itself. read the document to apply for net meter.
Buying Guide
Download product Installation diagram.
