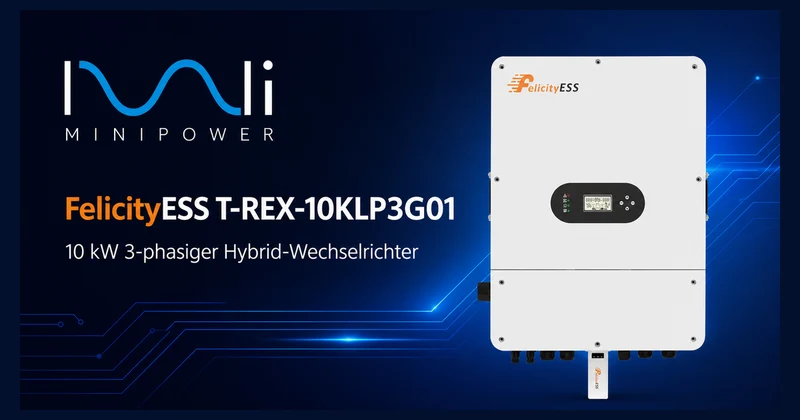

FelicityESS T-REX-10KLP3G01 10 kW 3-phase low-voltage hybrid inverter

The FelicityESS T-REX-10KLP3G01 10 kW 3-phase low-voltage hybrid inverter This is a 10 kW low-voltage hybrid inverter for professionally planned photovoltaic and storage systems. The model combines a three-phase 230/400 V output with a 40–60 V battery input, two MPP trackers, IP65 protection, Wi-Fi monitoring, and grid-tied, off-grid, and backup operating modes. This makes it suitable for projects where clearly tested system compatibility, traceable operating data, and a scalable energy supply are paramount.

Delivery

1× FelicityESS T-REX-10KLP3G01 10 kW 3-phase low-voltage hybrid inverter

Produktvorteile

-- 10 kW three-phase power: supplies suitable three-phase home and PV systems.

-- 40–60 V battery input: integrates approved low-voltage battery systems.

-- Two MPP trackers: enable the separate routing of suitable PV strings.

-- Multiple operating modes: support network, island and backup applications within system planning.

-- IP65 and WLAN monitoring: support protected installation and remote monitoring.

Compatibility

The T-REX-10KLP3G01 is designed for a 40–60 V low-voltage battery system. Battery protocol, PV string data, grid connection conditions, meter/CT configuration, and the regulations applicable in Germany must be confirmed by a qualified electrician before installation.

Technical information

-- Rated power: 10 kW
-- Phase: three-phase, 230/400 V AC
-- Battery voltage: 40–60 V
-- MPPT: 2 trackers / 2 strings
-- Maximum charging/discharging current: 200 A according to the manufacturer
-- Protection class: IP65

Matching accessories and related products

Alternative three-phase hybrid inverters from our product range. Manufacturer, power output, and battery platform differ; the devices are not directly interchangeable system components.

HUAWEI SUN2000-8K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-10K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-12K-MAP0 Three-Phase Hybrid Inverter
HUAWEI SUN2000-15K-MB0 hybrid inverter

Why Mini Power

With the T-REX-10KLP3G01, voltage level, communication protocol, and system design must be precisely matched. Mini Power therefore clearly presents confirmed key data, model designation, and the actual scope of delivery. We provide support in aligning the product with the inverter, battery, PV system design, and required measuring components. Unconfirmed compatibilities are not guaranteed. Connection, protection concept, grid connection, and commissioning remain the responsibility of a qualified electrician. This allows you to specifically compare the model, installation location, and required components with your existing or planned system before purchasing.

Frequently asked questions

-- Is this model compatible with any inverter or storage system?

No. The decisive factors are the current manufacturer's approval, voltage level, communication protocol, and system design.

Who is allowed to connect the product?

Connection, protection testing and commissioning must be carried out by a qualified electrician.

-- Which battery class is required?

A low-voltage battery system is required that is currently approved for the exact inverter model and communication protocol.
