EcoFlow Smart Meter Dual CT

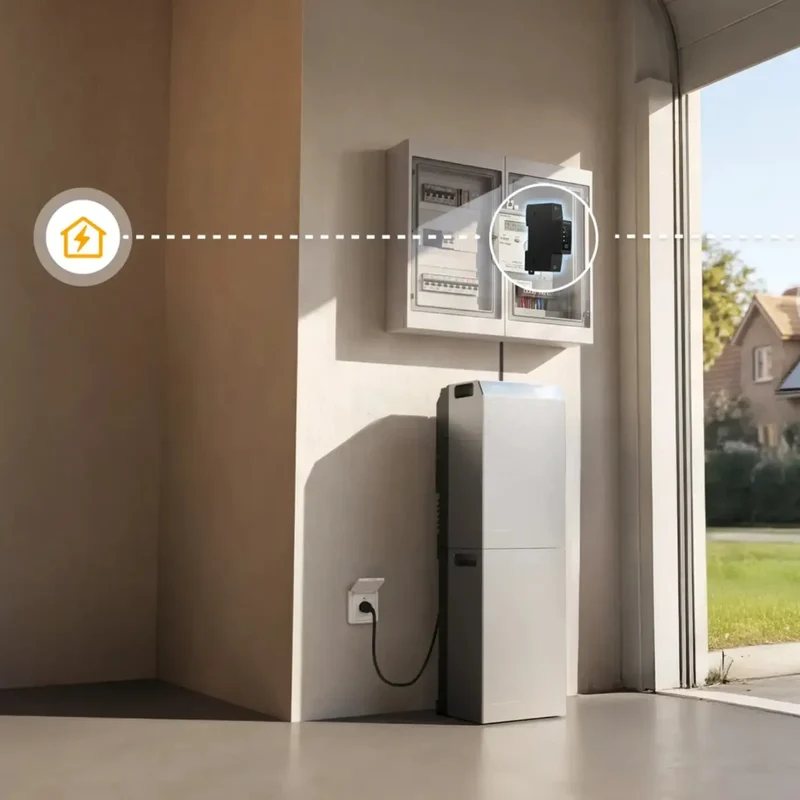

The EcoFlow Smart Meter Dual CT It measures two three-phase circuits and provides consumption data for compatible STREAM systems. Six current transformers monitor the main power supply as well as an additional PV or load circuit. Bluetooth, WLAN, and RS485 enable communication. This provides the STREAM 5000 and STREAM AC 5000 with a basis for adjusting their output power according to demand.

Delivery

1× EcoFlow Smart Meter Dual CT
1× Extension antenna (1,5 m, with suction cup)
2× external CT cables (6 current transformers in total)
1× RS485+/− terminal block
1× voltage measurement connection
1× Installation instructions
1× warranty card

Produktvorteile

-- Separately detect two electrical circuits. The house connection and additional PV or load circuit are recorded via two three-phase measuring channels.

-- Supports consumption-based power control. The measurement data helps compatible STREAM systems to adjust their output power to the actual energy demand.

-- Clearly check the scope of delivery. Two CT cables with a total of six current transformers, as well as antenna and connection terminals, are clearly assigned to the measurement setup.

Compatibility

EcoFlow lists STREAM 5000 and STREAM AC 5000 as compatible systems. The second measurement channel can detect a third-party PV circuit or an additional load. This does not imply general control authorization for other inverters or storage systems. Connection and installation must be carried out by a qualified electrician in accordance with the installation instructions included with the supplied device. User manual V1.1 describes mounting on a 35 mm DIN rail in dry indoor locations (IP30). For the STREAM 5000 series, the RS485 wiring step should be explicitly skipped; RS485 is only intended for devices with suitable communication ports.

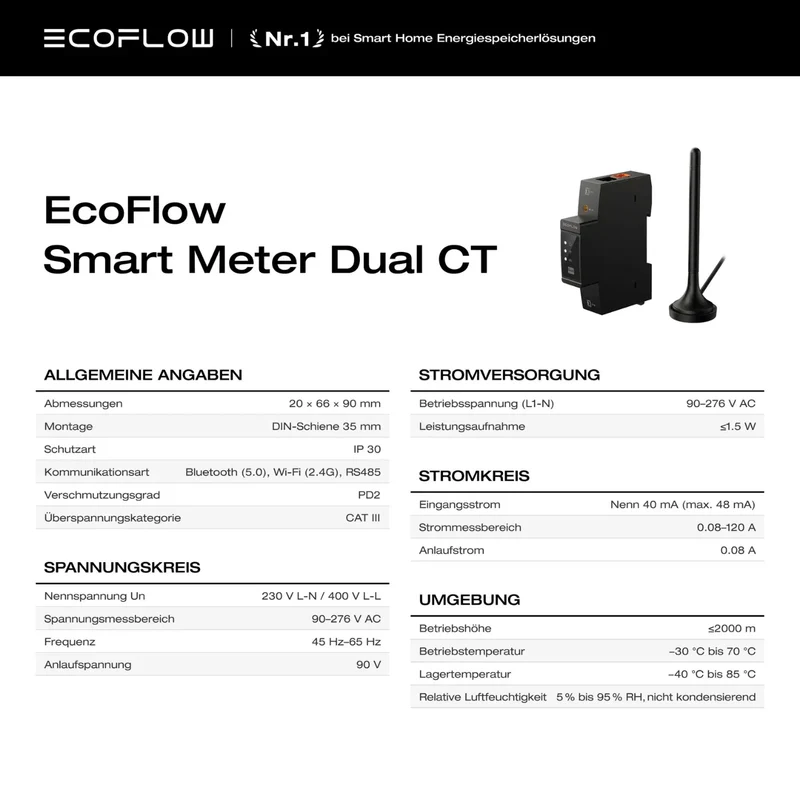

Technical information

-- Manufacturer SKU: EFDualChannelCT
-- Device model: EF-SM-DC
-- Measurement channels: 2
-- Phases per channel: 3
-- Total current transformers: 6 CTs
-- Additional measuring circuit: PV circuit or load
-- Communication: Bluetooth, WLAN, RS485
-- Accuracy according to manufacturer: < 10 W
-- Response time according to manufacturer: < 3 s
-- Antenna length: 1,5 m
-- Antenna design: Extension antenna with suction cup
-- Dimensions: 20 × 66 × 90 mm
-- Net weight: < 100 g
-- Approved systems: STREAM 5000 / STREAM AC 5000

Matching accessories and related products

The following offers are based on STREAM 5000 or STREAM AC 5000. A smart meter is already included in the respective offers; please check the specifications to avoid unnecessary duplicate orders.

EcoFlow STREAM series solar battery STREAM 5000 with 1x smart meter

EcoFlow STREAM AC 5000 with 1x Smart Meter

EcoFlow STREAM AC 5000 + EcoFlow STREAM extension battery + Smart Meter (discount)

EcoFlow STREAM 5000 complete set with 4–8 × 500 W solar modules

Why Mini Power

At Mini Power you will find the EcoFlow Smart Meter Dual CT As a standalone measuring accessory with a clear connection to STREAM 5000 and STREAM AC 5000. We differentiate between the monitoring of an additional circuit and enabling the control of a storage system. The listed components facilitate alignment with your system design. Before placing an additional order, please also check whether your chosen STREAM offer already includes a smart meter. Connection and commissioning should be carried out by a qualified electrician.

Frequently asked questions

Does it include a battery or solar panels?

No. This offer includes the smart meter and the listed measuring and connection components, but not a storage system or solar modules.

Does the smart meter have its own emergency power function?

No. It is a measuring device. Storage, power supply, and a possible backup power supply are provided by the appropriate energy system.
