Anker SOLIX Solarbank 2 E1600 Pro Storage 8 × 250W flexible solar modules 1,6 kWh

The Anker SOLIX solar bank 2 E1600 Pro set with 8× RENEPV V3.0 250W flex modules Combines 1,6 kWh storage, smart meter, and 2000 W module power. The modules are designated RFMM10NH6-250. Scope of delivery and datasheet values ​​have been updated; connection, wiring, and permissible input limits must be checked against both manufacturers' documentation before commissioning.

Mini Power / New Power GmbH has been operating as a [company name] since 2025. Anker SOLIX Authorized Retailer certified. Proof is in the official Anker SOLIX Dealer Overview visible.

Delivery

1 x Anker SOLIX Solarbank 2 E1600 Pro

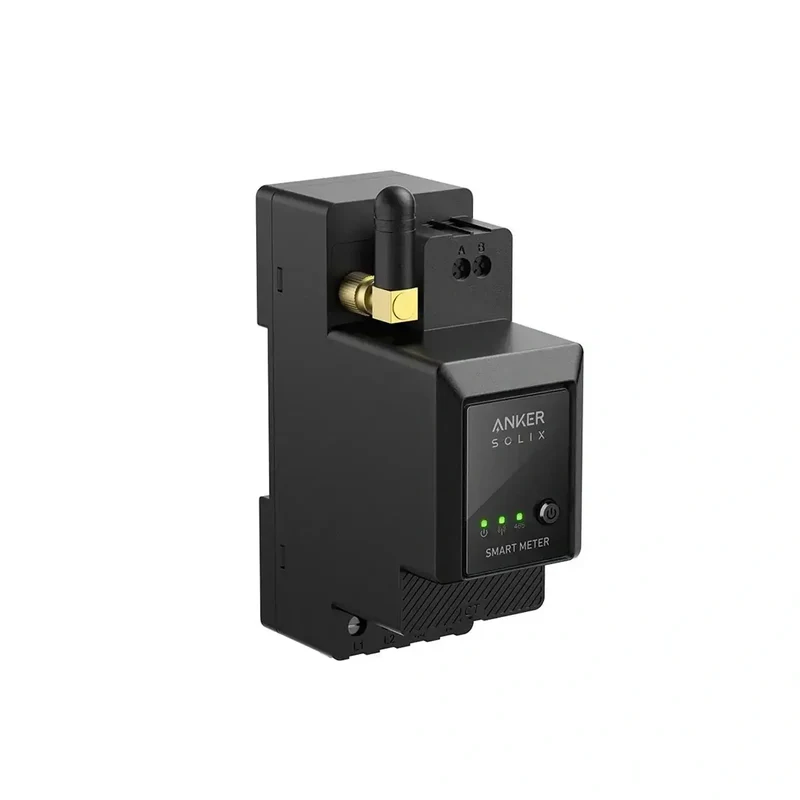

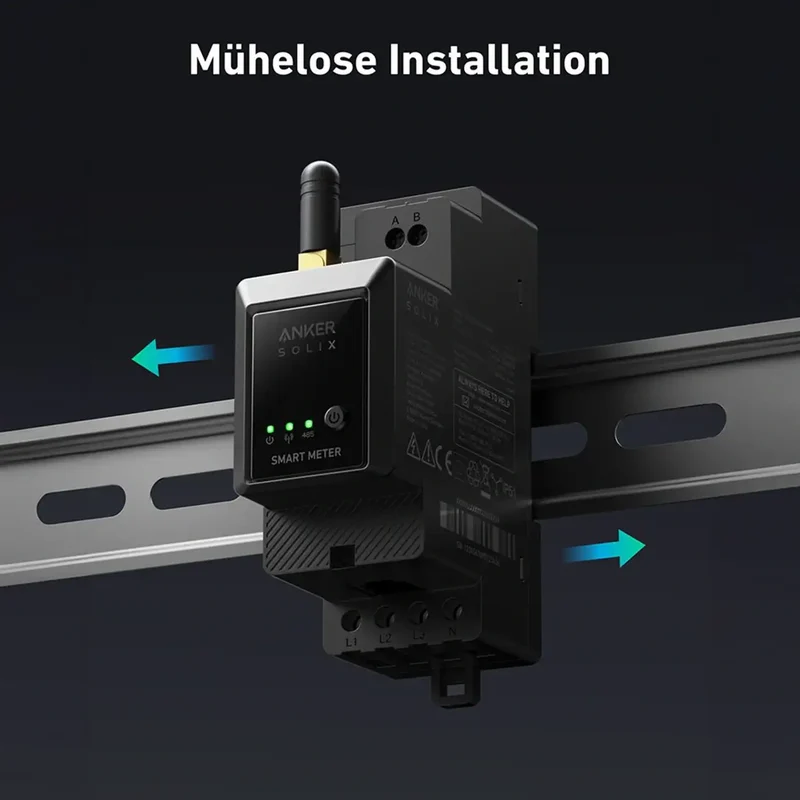

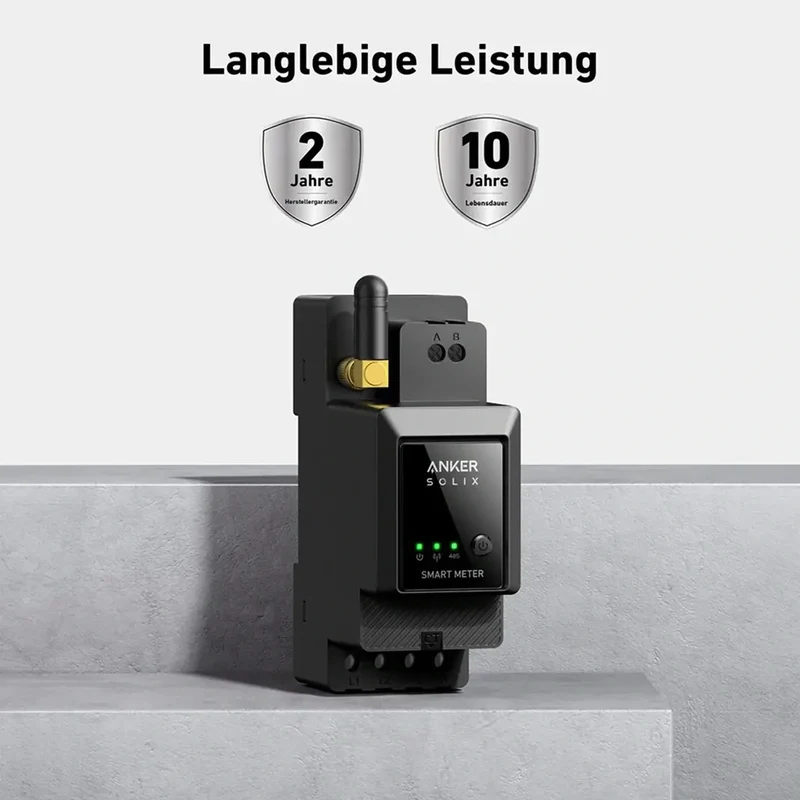

1 x Anker Smart meter
8 x RENEPV Flexible Solar Module 250W
8 x Anker SOLIX solar panel extension cable (3m)

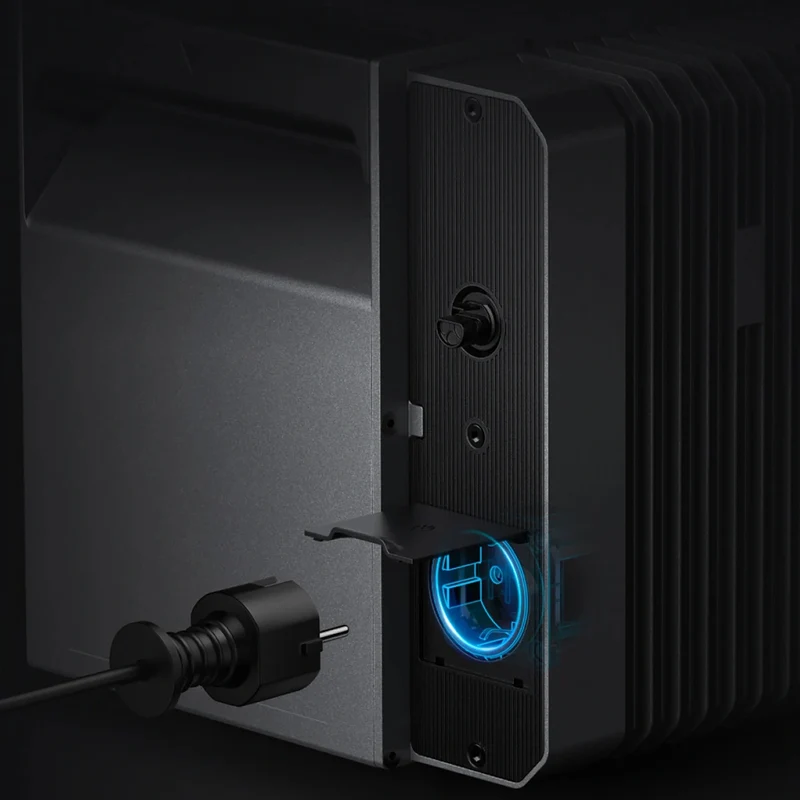

1 x Anker SOLIX Schuko AC cable (5m)
8 x Y-cables for solar panels (4 pairs)
1 x wrench for removing MC4 connectors
2 x L-shape wall mount
2 x cable organizer
48 × fastening straps / connectors

Produktvorteile

-- 2000 W updated module power: Four modules, each with 250 W, result in the module output specified in the set, which is uniformly documented.

-- Unique model assignment: The RFMM10NH6-250 is specified uniformly in terms of scope of delivery, datasheet and technical specifications.

-- 1,6 kWh storage capacity: The storage capacity is shown separately from the PV module power output.

-- Connection accessories listed: Smart meter, extension cable, AC cable and Y-cable remain traceable within the set.

Compatibility

The set configuration is not a blanket approval for every wiring configuration or installation situation. Before commissioning, the MPP voltage, MPP current, open-circuit voltage, short-circuit current, number of inputs, current and power limits, and connectors must be checked against the documentation of the storage or inverter manufacturer and the RENEPV datasheet.

Technical information

-- Storage capacity of the set: 1,6 kWh

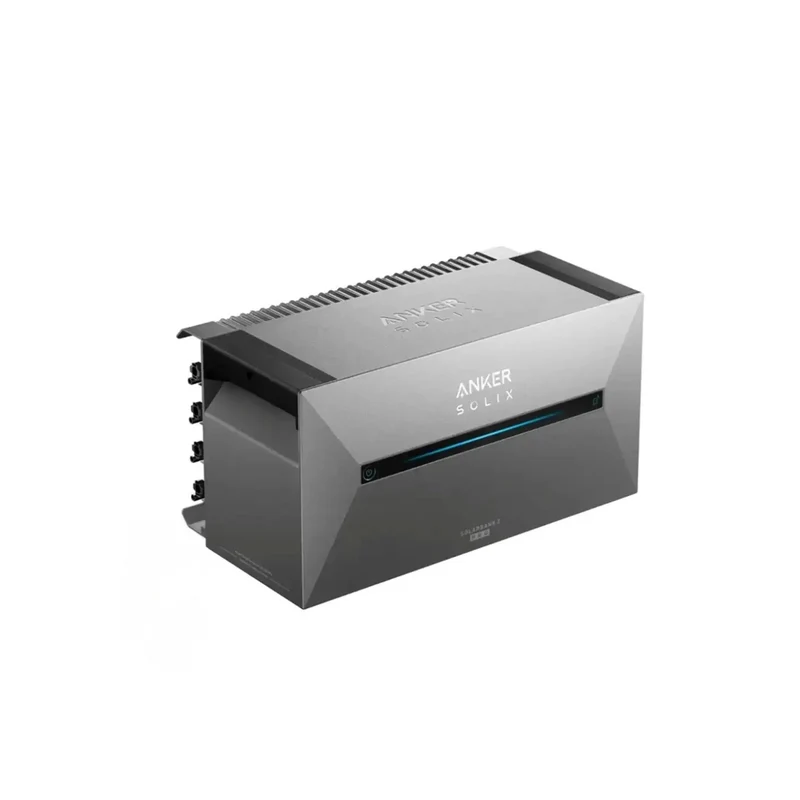

-- Main unit: Anker SOLIX Solarbank 2 E1600 Pro
-- RENEPV modules in a set: 8 × 250 W = 2000 W
-- Model: RFMM10NH6-250
-- Power tolerance: 0 to +5 W
-- Module efficiency: 21,4%
-- Vmp/Imp: 36,98V/6,76A
-- Voc / Isc: 43,35V ±3% / 7,30A ±3%

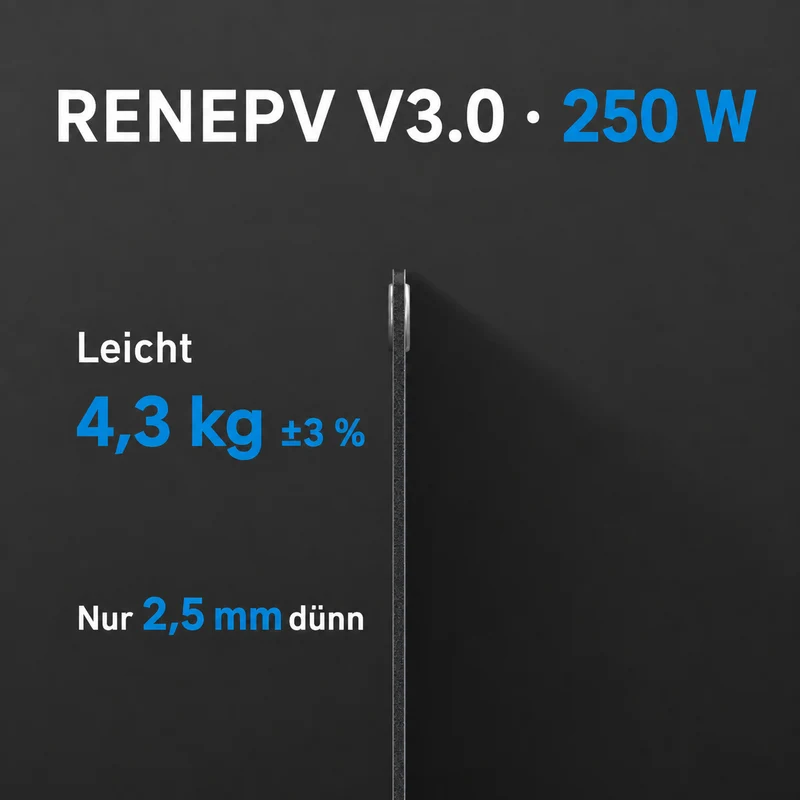

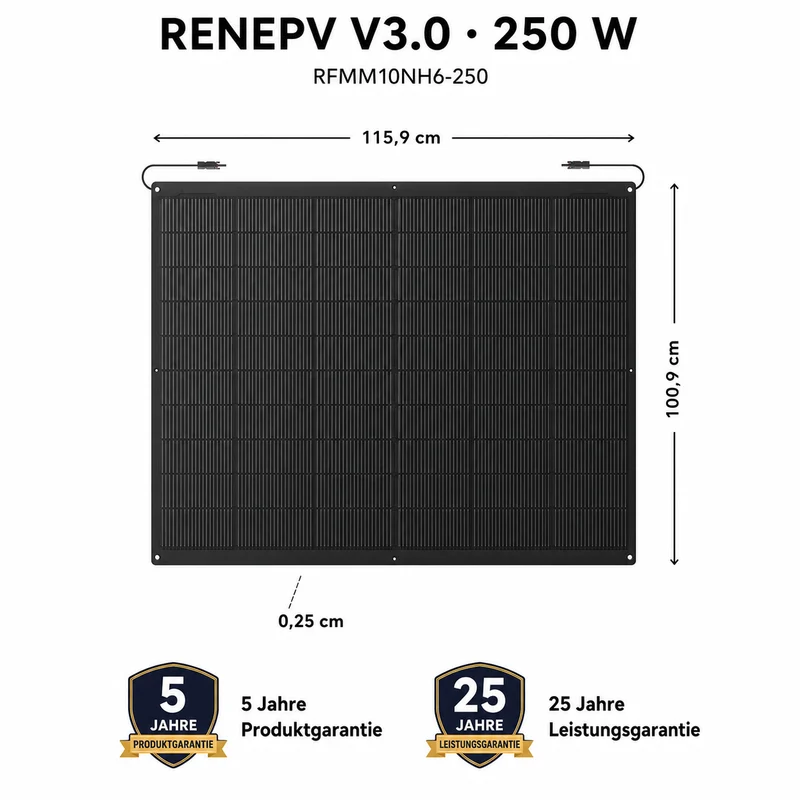

-- Dimensions per module: 1.159 × 1.009 × 2,5 mm
-- Weight per module: 4,3 kg ±3%
-- Construction: PET front and back layers, black backing
-- Junction box: IP67
-- PV cable: 4,0 mm²
-- Connectors: MC4-compatible, IP67
-- Operating temperature: −20 to +65 °C
-- Maximum series fuse: 15 A
-- Maximum system voltage: 1.500 V DC
-- Warranty according to data sheet: 5-year product warranty and 25-year performance warranty

RENEPV RFMM10NH6-250 Datasheet (PDF, English)

Matching accessories and related products

• Anker Solix Storage
• Anker SOLIX Solarbank 2 E1600 Pro Storage 4 × 250W Flexible Solar Modules 1,6 kWh Set

Why Mini Power

At Mini Power, in Set with 8× RENEPV V3.0 250W flex modules Storage system or microinverter, 2000 W module power, and accessories are shown separately. The current manufacturer's datasheet is linked directly; the confirmed scope of delivery is listed completely and in the original order. Since the electrical limits of both product groups must be tested together, the page does not contain a general compatibility guarantee or freely transferable wiring recommendations. This ensures that product selection remains transparent and technically comprehensible.

Frequently asked questions

-- What module power output does the updated set contain?

Included are 8 RENEPV modules, each with 250 W, for a total nominal power of 2000 W.

-- What fasteners or connecting parts are included?

Included are only the fastening or connecting parts listed in the scope of delivery, in the quantity specified therein.

Is electrical compatibility automatically guaranteed?

No. The electrical limits and the specific wiring must be checked against both manufacturers' documentation before commissioning.
