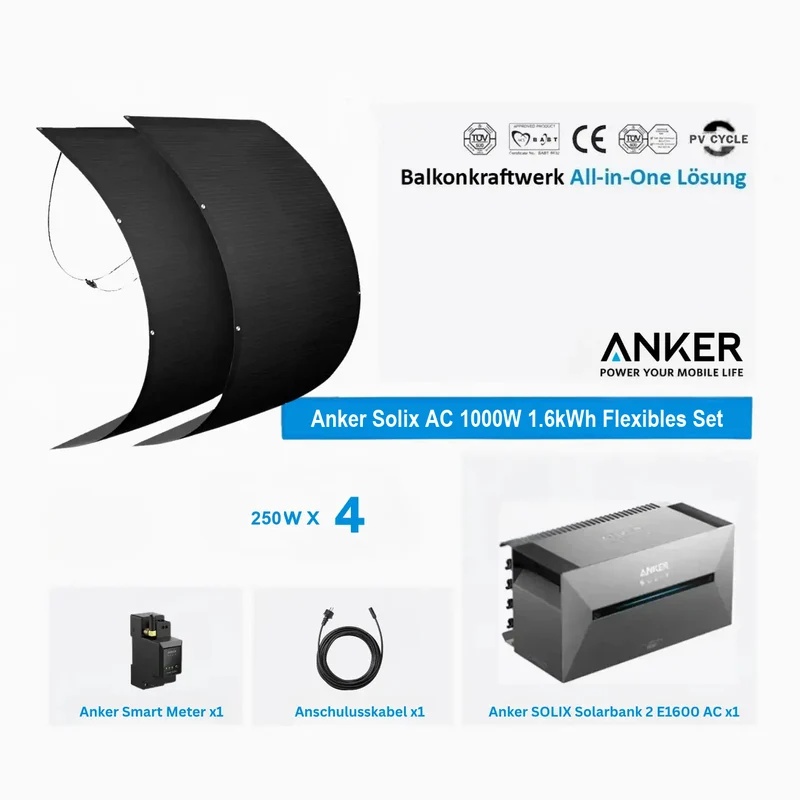

Anker AC flexible set 1,6 kWh 4 × 250W flexible solar panels

The Anker SOLIX solar bank 2 E1600 AC set with 4× RENEPV V3.0 250W flex modules It combines a 1.600 Wh AC storage system, a smart meter, and 1000 W of module power. The new modules are designated RFMM10NH6-250. The scope of delivery and module data have been completely updated; electrical planning must be carried out in accordance with the limit values ​​of both manufacturers and the intended wiring configuration.

Mini Power / New Power GmbH has been operating as a [company name] since 2025. Anker SOLIX Authorized Retailer certified. Proof is in the official Anker SOLIX Dealer Overview visible.

Delivery

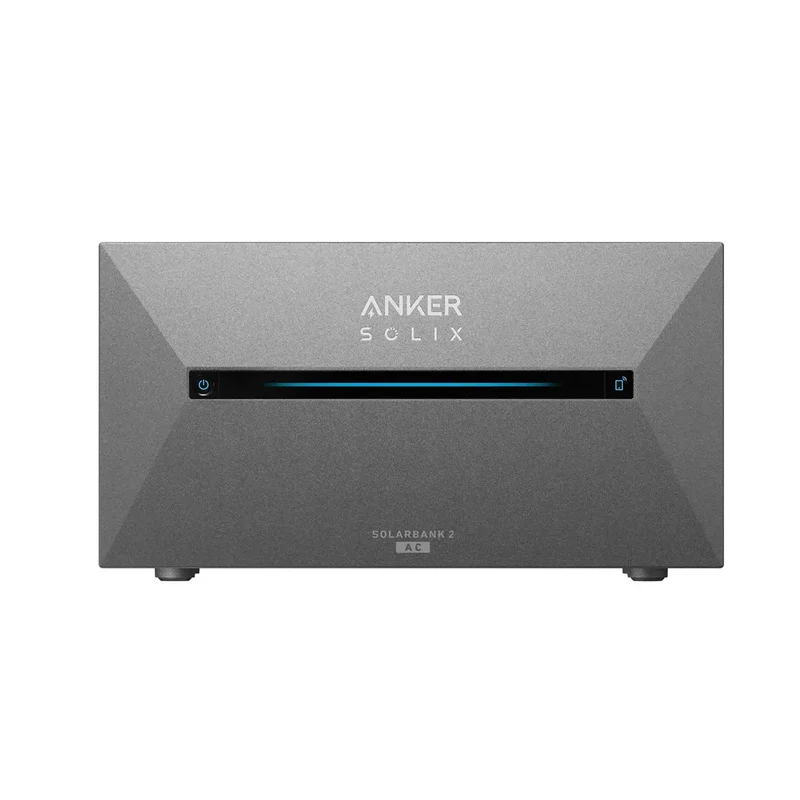

1 × Anker SOLIX solar bank 2 E1600 AC (SKU 10001)
1 × Anker SOLIX Smart Meter (SKU 10101)

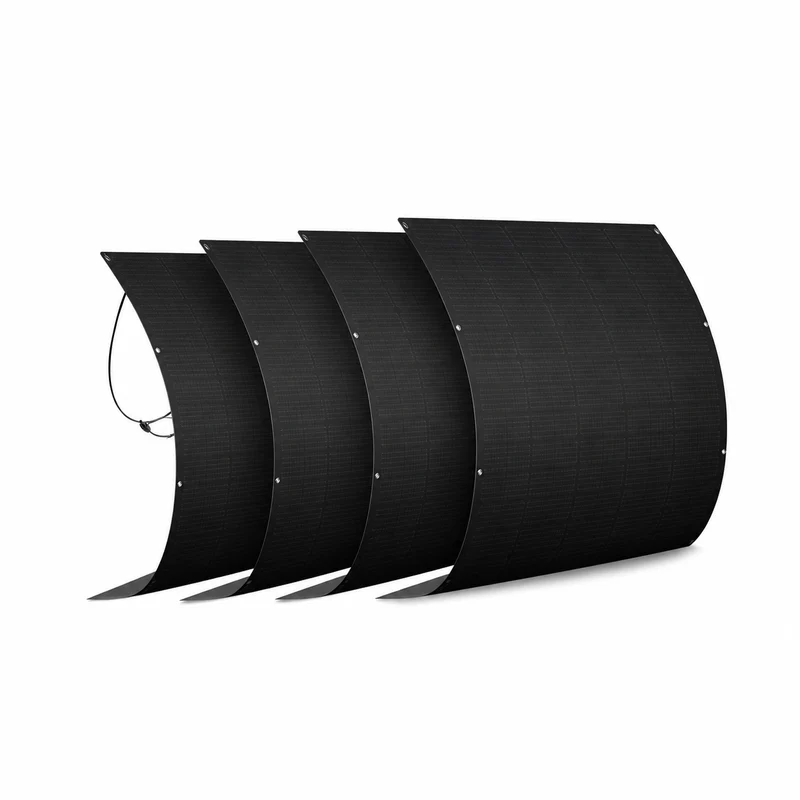

4× RENEPV RFMM10NH6-250 flexible 250W PV module, total 1000Wp
1 × Anker SOLIX Schuko connection cable, 5 m
2× PV-Y parallel connectors
1× MC4 mounting tool
2x L-brackets and 2x cable organizers
Mounting hardware for the four flexible modules as per set scope

Produktvorteile

-- 1000 W updated module power: Four modules, each with 250 W, result in the module output specified in the set, which is uniformly documented.

-- Unique model assignment: The RFMM10NH6-250 is specified uniformly in terms of scope of delivery, datasheet and technical specifications.

-- 1.600 Wh AC storage: Storage capacity and PV module power remain transparent as separate quantities.

-- Smart meter included: The confirmed set includes the Anker SOLIX Smart Meter.

Compatibility

The set configuration is not a blanket approval for every wiring configuration or installation situation. Before commissioning, the MPP voltage, MPP current, open-circuit voltage, short-circuit current, number of inputs, current and power limits, and connectors must be checked against the documentation of the storage or inverter manufacturer and the RENEPV datasheet.

Technical information

-- Storage capacity: 1.600 Wh
-- PV inputs: 2 MPPT, each with a maximum output of 600 W
-- PV voltage range: 16–60 V
-- Maximum input current: 16 A per MPPT
-- AC output to the mains: up to 800 W
-- Off-grid output: up to 1.200 W
-- Maximum AC charging input: 2.000 W
-- Storage protection rating: IP65
-- Communication: WLAN and Bluetooth
-- RENEPV modules in a set: 4 × 250 W = 1000 W
-- Model: RFMM10NH6-250
-- Power tolerance: 0 to +5 W
-- Module efficiency: 21,4%
-- Vmp/Imp: 36,98V/6,76A
-- Voc / Isc: 43,35V ±3% / 7,30A ±3%
-- Dimensions per module: 1.159 × 1.009 × 2,5 mm
-- Weight per module: 4,3 kg ±3%
-- Construction: PET front and back layers, black backing
-- Junction box: IP67
-- PV cable: 4,0 mm²
-- Connectors: MC4-compatible, IP67
-- Operating temperature: −20 to +65 °C
-- Maximum series fuse: 15 A
-- Maximum system voltage: 1.500 V DC
-- Warranty according to data sheet: 5-year product warranty and 25-year performance warranty

RENEPV RFMM10NH6-250 Datasheet (PDF, English)

Matching accessories and related products

• Anker SOLIX Schuko connection cable 15 m
• Anker SOLIX Smart Meter

Why Mini Power

At Mini Power, in Set with 4× RENEPV V3.0 250W flex modules Storage system or microinverter, 1000 W module power, and accessories are shown separately. The current manufacturer's datasheet is linked directly; the confirmed scope of delivery is listed completely and in the original order. Since the electrical limits of both product groups must be tested together, the page does not contain a general compatibility guarantee or freely transferable wiring recommendations. This ensures that product selection remains transparent and technically comprehensible.

Frequently asked questions

-- What module power output does the updated set contain?

Included are 4 RENEPV modules, each with 250 W, for a total nominal power of 1000 W.

-- What fasteners or connecting parts are included?

Included are only the fastening or connecting parts listed in the scope of delivery, in the quantity specified therein.

Is electrical compatibility automatically guaranteed?

No. The electrical limits and the specific wiring must be checked against both manufacturers' documentation before commissioning.
