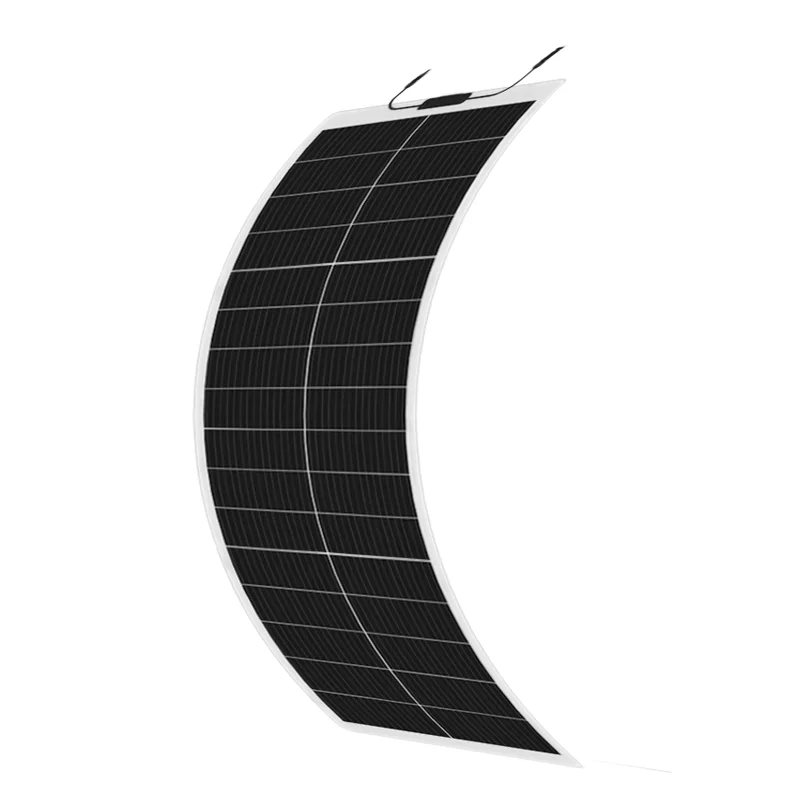

60W Customized Flexible Solar Panels 500w for Boat, Yaht and RV

SPECIFICATIONS

Brand Name: Raygleam

Cell size: 210mmx210mm

Certificate: CE,TUV and IEC

Color: White/Black

Customized power: 60W

Model Number: RG-FLX60M-C

Panel Dimensions: 610x610x2

Panel Efficiency: 21.4%

Place of Origin: Jiangsu, China

Shape: Triangle/Round/Any possible shape

Size: 610*6100*2mm

Type: Customized Solar Panel

Warranty: 10 Years

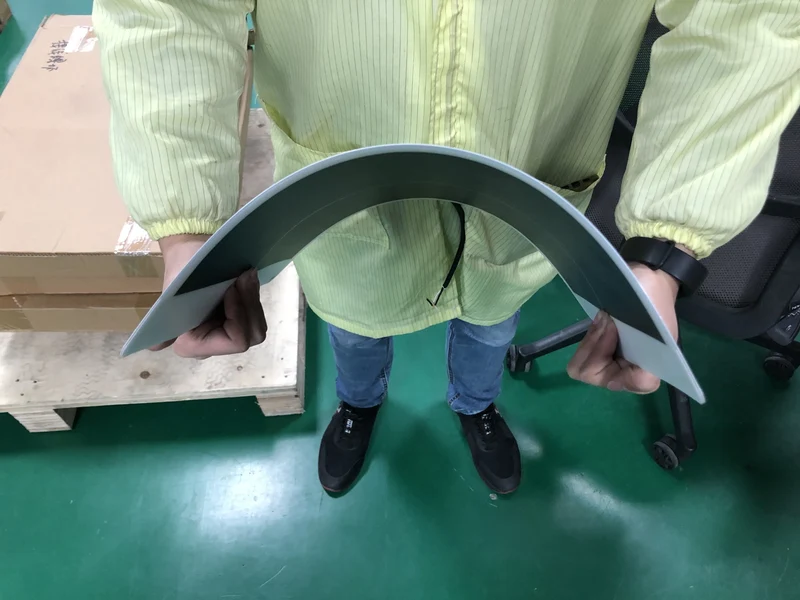

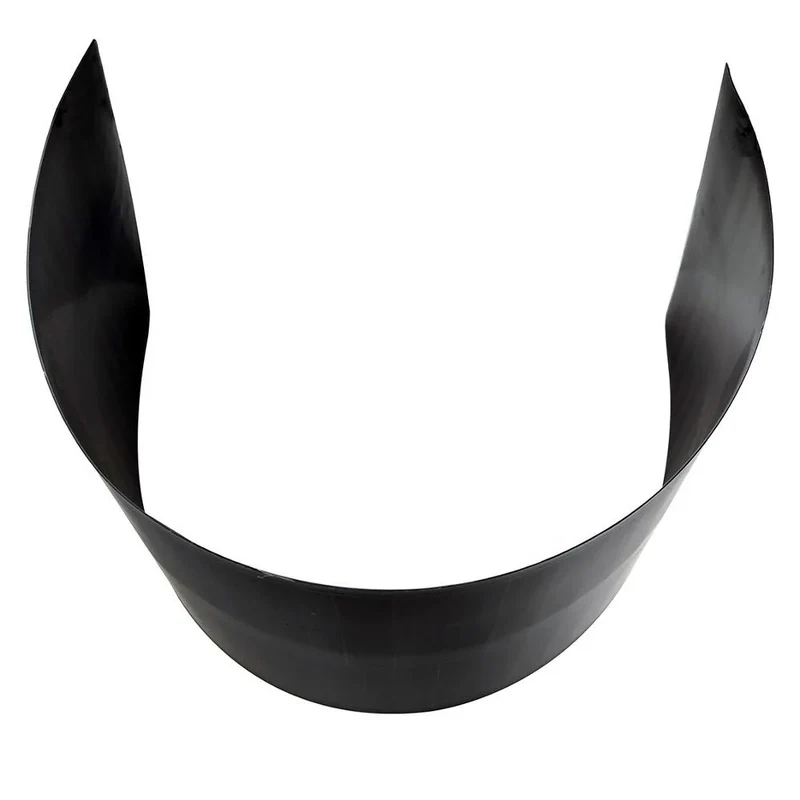

Product Description Raygleam Flexible panel use unique shingled cells technology. The panel made with conducting resin paste without ribbon to minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh weather conditions and are almost impervious to corrosion. Key Features ★ The latest Shingled PERC solar cells technology. ★ Over 30 degrees of ultimate bending no cells cracks.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 10 years workmanship and materials warranty.
★ OEM and ODM supported. Specification

Typical Electrical Data
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5;
Model	RG-FLX60M-C	RG-FLX65M-C
Pmax (W)	60W	65W
Power Tolerance	0 ~ +3%
Vmp (V)	18.42	18.6
Imp (A)	3.58	3.79
Voc (V)	22.32	22.5
Isc (A)	3.8	4
Working Temperature	-40°C ~+ 85°C
Nominal Operating cell temperatures	45± 2°C
Temperature coefficient of Pmax	-0.4%/ °C
Temperature coefficient of Voc	-0.3 %/ °C
Temperature coefficient of Isc	0.06 %/ °C
Temperature coefficient of Vmpp	-0.35 %/ °C
Nominal Voltage	12V
Max. System Voltage	600Vdc
Max. Fusing Current	15A
Mechanical Data
Cells Type	Prime Monocrystalline PERC solar cells
Module Dimensions (L/W/H) (mm)	610*610
Module weight	1.3kg
Cell's Efficiency	20.4%	21.0%
Front Cover (material/ thickness)	Higher Strength TPT/ETFE/ 2.2mm
Back Sheet (color)	White/ Black
Bending Range	≧30°
Junction Box (protection degree)	≧IP65/IP68 with by-pass diode
Cables & Connectors	500mm/2.5&4.0m㎡/MC4 compatible/IP68

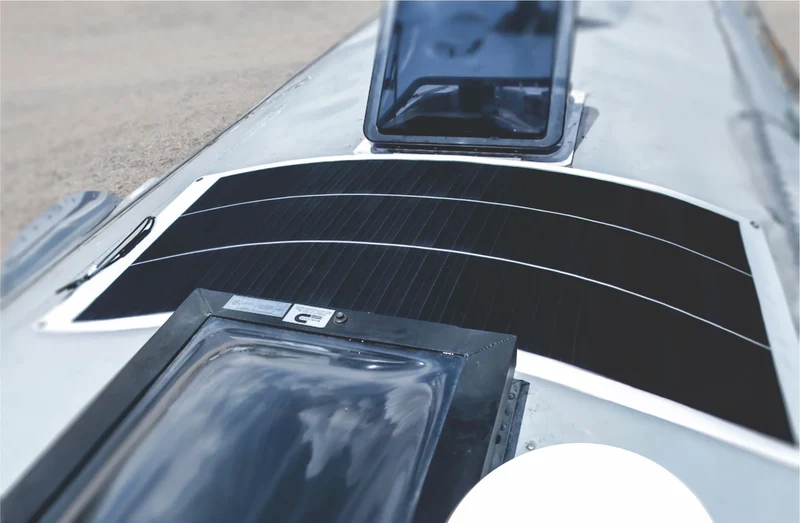

Product Details Application Product packaging Factory Views
