1200W 12V Monocrystalline Renogy Solar Power Kit

The Renogy 1200 Watt Monocrystalline solar cabin kit is the power solution for tiny houses, mobile homes, or even small remote homes that you visit occasionally. Created with a focus in mind: to power essentials and low tier luxuries with renewable energy. This solar kit is a great choice for a secondary power source.

It offers great backup power in case of emergencies or for situations where you might need a little extra power.

Included in this kit, the Renogy's new 320W monocrystalline solar panels feature Corrosion-resistant aluminum frame allows extended outdoor use and are easy to install. They yield a little more power (1260W actual) for your needs and are made with high quality materials that can last a decade.

KEY FEATURES

Versatile

• Ideal solar panel kit for off-grid systems like small remote cabins, small remote homes, or even tiny houses that you visit occasionally.
• Compatible with off-grid residential and commercial rooftop systems.
• The MidNite Classic lets you stack multiple charge controllers, providing more options for expansion.

Safe

• Just launched MidNite MNEDC- Quad encases MNEDC100 breaker that works as a DC disconnect to protect battery bank and charge controller.

Efficient

• Offers great performance, even with low light and overcast conditions.
• High Efficiency PERC Solar Cells, Black frame solar panel.
• The MidNite Classic charge controller, allows you to monitor your system remotely through a user's local network or via midnitesolar.com.

WARRANTY INFORMATION

• Solar Panels 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
• 5-year material and workmanship warranty
• Accessories 1-year material warranty
• See warranty information

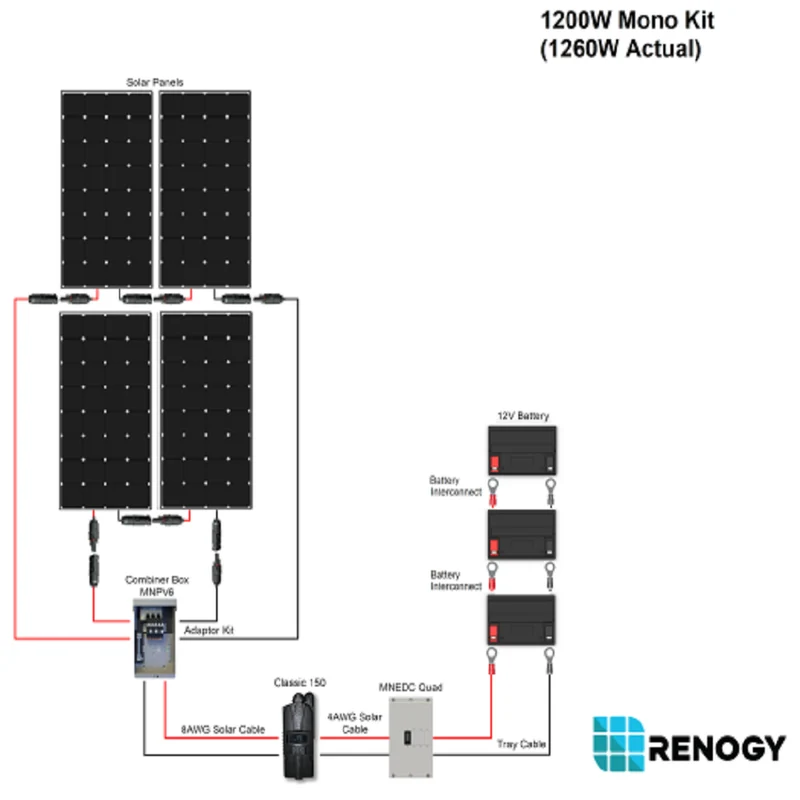

THE SOLAR KIT INCLUDES

• 320W Mono Solar Panel 4 x
• MidNite Classic MPPT Charge Controller- 150 1 x
• MidNite Solar Combiner Box MNPV6 1 x
• MidNite Solar 15A-150 Circuit Breaker 2 x
• MidNite Breaker MNEDC100 1 x
• MidNite MNEDC- Quad Enclosure 1 x
• 8ft 8AWG Stranded and 40ft 10AWG AK - Stranded and THHN Solar Cable - 1 x Stranded / 2 x AK
• 4AWG Tray Cable and 4AWG THHN and 4AWG Double Ring - 1 x THHN/ 1 x TC /1 x Ring


RESOURCES

Solar Mount Pro Installation Guide

Solar Mount Detail Drawings

Flashkit PRO

Questions about the Renogy 1200 Watt 12 Volt Solar Starter Kit? Let us know! Contact our Customer Service at [email protected] for more information about this or any other Renogy solar starter kit.

TECHNICAL SPECIFICATIONS

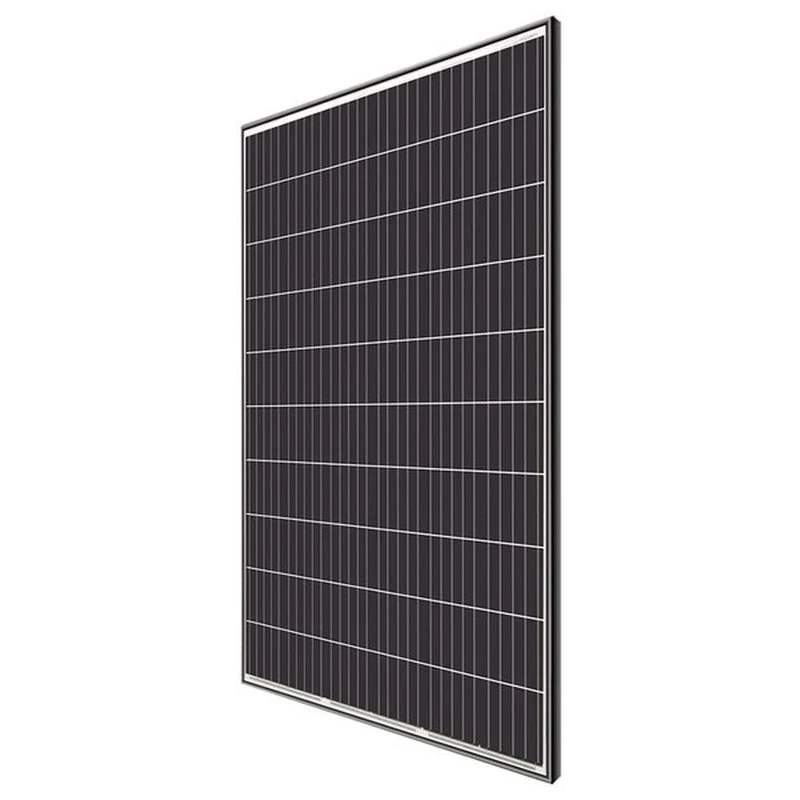

SOLAR PANEL

• Max Power at STC: 320W
• Open Circuit Voltage: 40.1V
• Short Circuit Current: 10.08A
• Optimum Operating Voltage: 33.7V
• Optimum Operating Current: 9.50A
• Operating Temperature: -40°F to 194°F (-40°Cto 90°C)
• Dimensions: 65.6*39.5*1.4 in (1666*1002*35 mm)
• Weight: 40.8 lbs (18.5kg)
• Cables:12 AWG (2.95 ft); Junction Box: IP67
• Module Efficiency: 19.18%
• Maximum System Voltage: 1000VDC UL
• Maximum Series Fuse Rating: 15A

Download Data Sheet

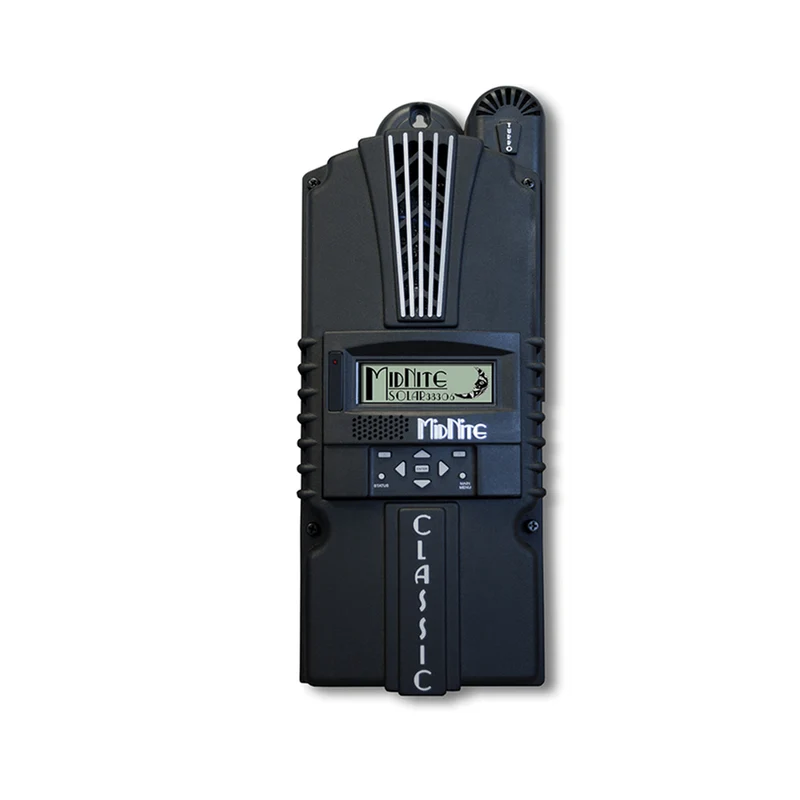

MIDNITE 150

• Nominal Voltage: 12V - 72V
• Rated Charge Current: 96A @ 12V, 94A @ 24V, 86A @ 48V
• Max. PV Input Voltage: 150 VDC
• Power Conversion Efficiency: 98% (Typical system)
• Self-Consumption: 2.8W
• Dimensions:14.9 x 6.0 x 4.0 in / 378.5 x 152.4 x 101.6 mm
• Terminals: 4 AWG max
• Weight: 12 lbs / 5.45 kgs
• Common Ground: Negative
• Certifications: "ETL listed to UL1741 and CSA"

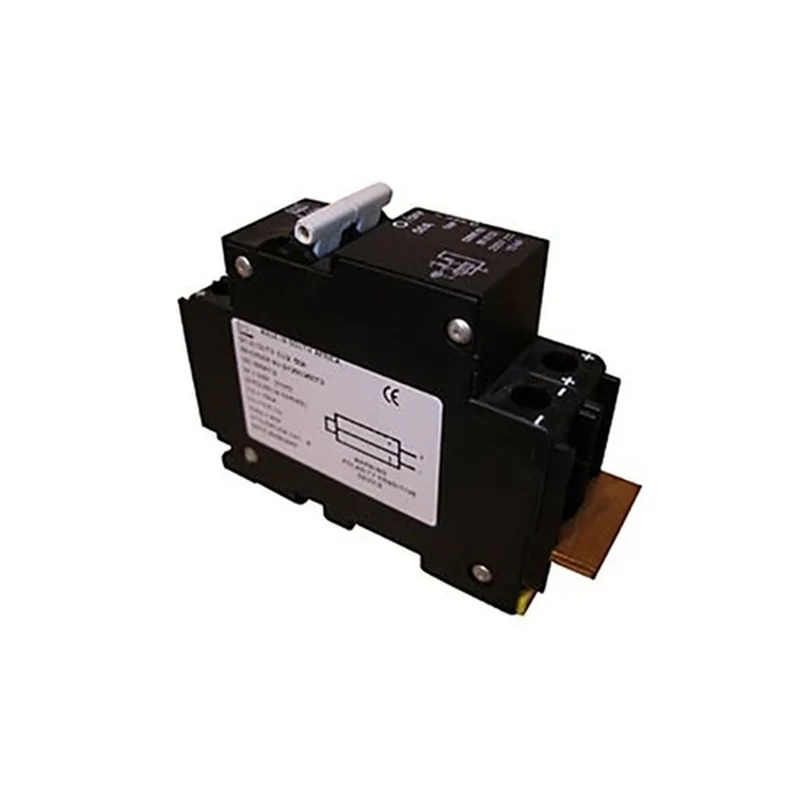

MNEPV BREAKER

• Model: MNEPV
• Max. Input Voltage: 150 VDC
• Terminals: 14-6AWG
• # of Poles: 1
• Rating: 15A

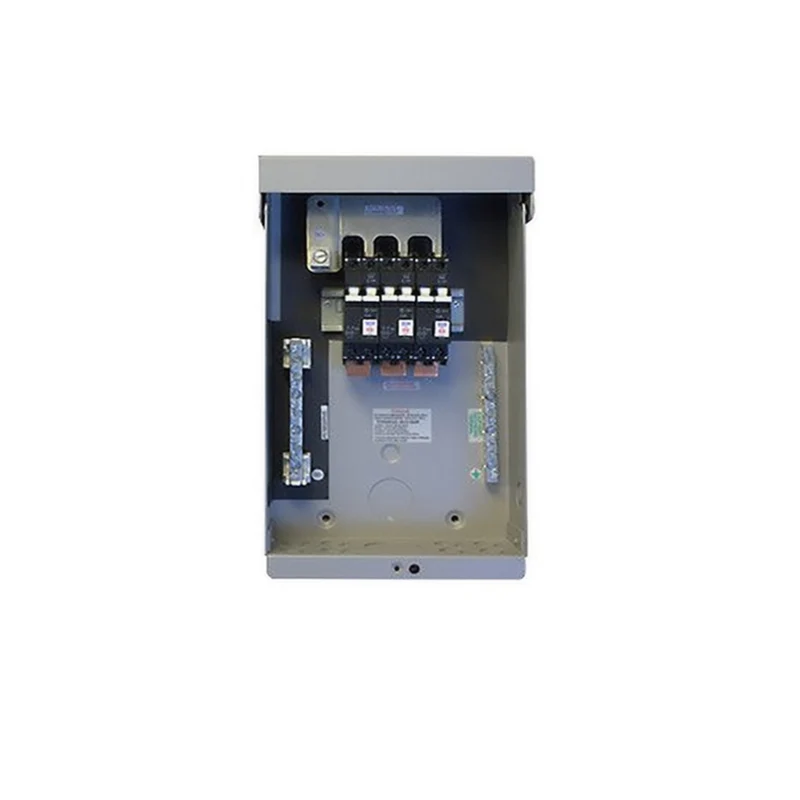

MNPV6 COMBINER

• Model: MNPV6
• Max. Input Voltage: 150 VDC
• Max. # Circuit Breakers: 6 X 150VDC Breakers
• Terminals: 14-6AWG
• Size: 9.0 x 14 x 4 in / 228.6 x 355.6 x 101.6
• Weight: 4 lbs / 1.8 kgs

MNEDC100

• Rating: 100A
• Max. Input Volts: 150 VDC
• Weight: 1 lb
• Dimensions: 8.0 x 4.0 x 3.0 in / 203.2 x 101.6 x 76.2 mm
• Terminals: 1/4" stud terminals

QUAD ENCLOSURE

• Enclosure: Aluminum General Purpose
• # of Breakers: up to 4 (5-100A)
• Dimensions: 4 x 9 x 5 in / 101.6 x 228.6 x 127 mm
• Weight: 1.65 lbs / .75 kgs
• Environmental Rating: Type 1 (Indoor)

ADAPTOR KIT

• Length: 40ft
• AWG: 10
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F / -40°C to 85°C

8AWG THHN (PAIR)

• Length: 8ft
• AWG: 8
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F / -40°C to 85°C

4AWG TRAY CABLE (1X16FT, 1X8FT) + DOUBLE RING (1X8FT)

• Length: 16 ft
• AWG: 4
• Rated Voltage: 600/1000V
• Temperature: -40°F to +185°F / -40°C to 85°C
